- Details
- Category: Illumination

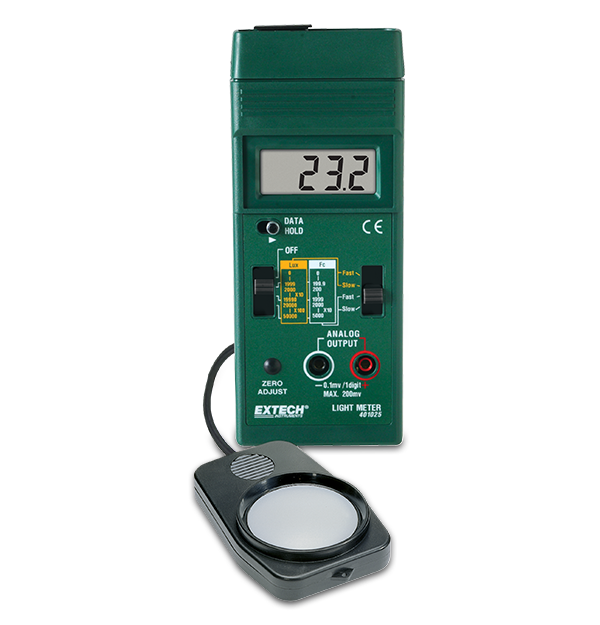

The 401025 is a Foot Candle/Lux Meter that uses a precision photo diode and color correction filter to measure light levels up to 5000FC (foot-candles) and 50,000 Lux with 5% accuracy. The meter has a fast/slow reaction time and an analog output (1mV per count) for transferring readings to a recorder. Comes with a 9-volt battery.
| Analog Output | Yes |
|---|---|
| Cosine and Color Corrected | Yes |
| Fast Response | 0.2s |
| Light (Foot Cantre) | 200, 2000, 5000Fc |
| Light (Foot Cantre) Basic Accuracy | ±5% full scale |
| Light (Foot Cantre) Max Resolution | 1 Lux |
| Light (Lux) | 2000, 20000, 50000 Lux |
| Slow Response | 0.4s |
| Certifications | CE |
| Dimensions | 6.4 × 2.8 × 1.2" (163 × 70 × 30mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 8.3oz (220g) |
- Details
- Category: Illumination

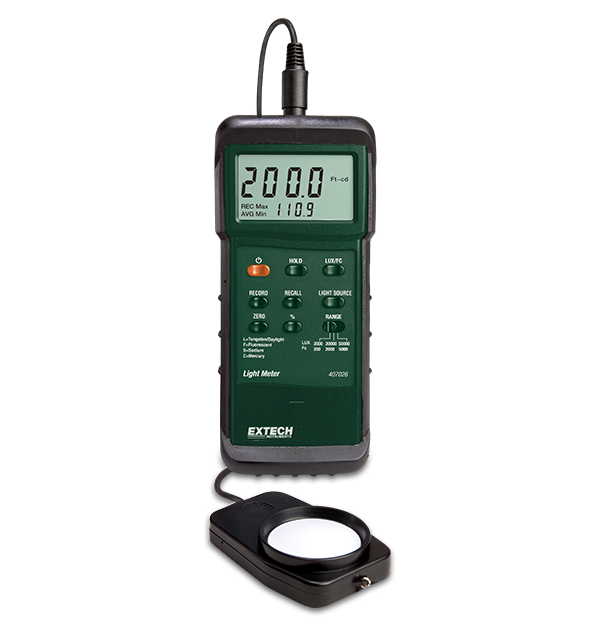

This 407026 Heavy Duty Light Meter has four illumination type settings for improved accuracy (tungsten/daylight, fluorescent, sodium, and mercury). Additional features include Data Hold, Min/Max/Average, Auto power off, and a percentage differential reading from a reference point. Built-in RS-232 port with optional Data Acquisition Software and Datalogger. Includes a 9V battery, light sensor with a 45" (1.1m) cord, protective cover, and holster with stand.
| Cosine and Color Corrected | Yes |
|---|---|
| Light (Foot Cantre) | 200, 2000, 5000Fc |
| Light (Foot Cantre) Basic Accuracy | ±4% full scale |
| Light (Foot Cantre) Max Resolution | 1Lux |
| Light (Lux) | 2000, 20000, 50000Lux |
| Light (Lux) Basic Accuracy | ±4% full scale |
| PC Interface | Yes |
| Certifications | CE |
| Dimensions | 7 × 2.9 × 1.3" (178 × 74 × 33mm) |
| Power | 1 × 9V battery |
| Warranty | 3 years |
| Weight | 1.6lbs (726g) |
- Details
- Category: Illumination

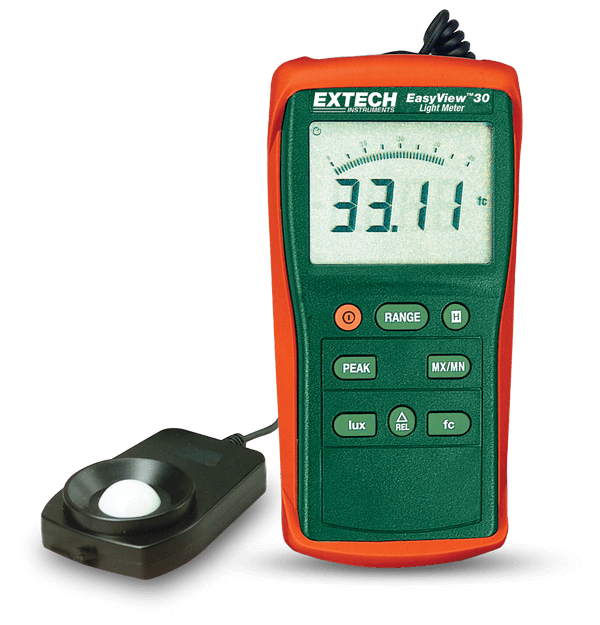

The EA30 Light Meter has a compact, durable construction and a wide display. Multiple wide measuring ranges: 40,000Fc in four ranges and 400,000 Lux in five. Data hold freezes the display's MIN/MAX measurements. Cosine function is zero, and measurements are color adjusted. Low battery and overrange warnings. Auto power off to conserve battery life. The meter has a precision silicon photodiode sensor and a 3ft coiled cord for convenient storage. Comes with a built-in stand, a remote sensor with a protective cover, a protective rubber holster, and six AAA batteries.
| Cosine and Color Corrected | Yes |
|---|---|
| Light (Foot Cantre) | 40, 400, 4000, 40,000Fc |
| Light (Foot Cantre) Basic Accuracy | ±3% of reading + 0.5% full scale |
| Light (Foot Cantre) Max Resolution | 0.01Fc |
| Light (Lux) | 40, 400, 4000, 40,000, 400,000Lux |
| Light (Lux) Basic Accuracy | ±3% of reading + 0.5% full scale |
| Light (Lux) Max Resolution | 1Lux |
| Certifications | CE |
| Dimensions | 5.9 × 2.8 × 1.4" (150 × 72 × 33mm) |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 8.3oz (235g) |
- Details
- Category: Illumination

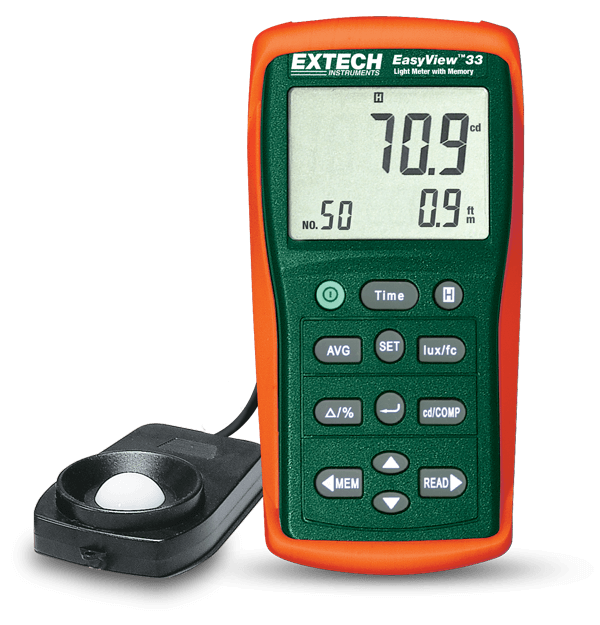

This compact and ruggedly constructed meter offers a wide measurement range of 99,990 foot candles in 5 ranges and 999,990 Lux in 5 ranges, with a resolution of 0.001Fc/0.01lux. Store and recall up to 50 measurements with a relative or real-time clock stamp, calculate luminaous intensity (candela), a ripple function that removes stray light from the primary light source measurement, multi-point average function, timed hold, relative measurement in absolute value or percentage deviation, comparator function with high/low alarms, and disable auto power off. The kit includes a built-in stand, light sensor, and protective cover, as well as a 36" (0.9m) coiled cable, protective holster, 6 AAA batteries, and carrying box.
| Cosine and Color Corrected | Yes |
|---|---|
| Light (Foot Cantre) | 9.999, 99.99, 999.9, 9999, 99,990 Fc |
| Light (Foot Cantre) Basic Accuracy | ±3% |
| Light (Foot Cantre) Max Resolution | 0.001Fc |
| Light (Lux) | 99.99, 999.9, 9999, 99,990, 999,900 Lux |
| Light (Lux) Basic Accuracy | ±3% |
| Light (Lux) Max Resolution | 0.01Lux |
| Certifications | CE |
| Dimensions | 5.9 × 2.8 × 1.4" (150 × 72 × 33mm) |
| Display | 999999-count segment LCD |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 11.29oz (320g) |
 |
