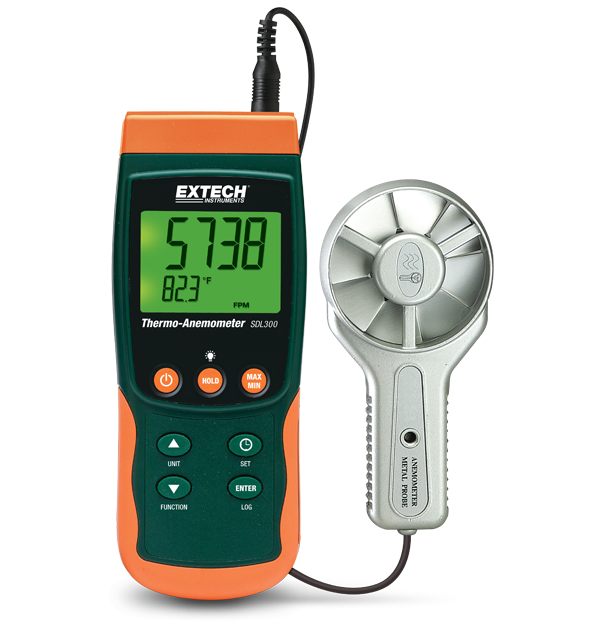

The SDL300 saves data to an SD card in Excel format. The metal vane can endure temperatures up to 158°F (70°C) and air velocity up to 6900ft/min. Dataloggers date and time stamp readings and store them on an SD card in Excel format for easy transfer to a PC. The data sample rate can be set anywhere between 1 and 3600 seconds. Stores 99 manual readings and 20M readings on a 2GB SD card. Type K/J thermocouple input for high-temperature measurements. The large (9999 count) LCD displays both air velocity and temperature. 2% velocity accuracy with low friction ball bearing vane wheel on 39" (1m) wire. Record/Recall MIN, MAX, Data Hold, Auto Power Off. Complete with 6 x AA batteries, SD card, metal vane sensor with 3.9ft (120cm) cable, and sturdy carrying bag.
| Air Velocity (ft/min) | 60 to 6900ft/min |
|---|---|
| Air Velocity (ft/min) Basic Accuracy | ±2% of reading |
| Air Velocity (ft/min) Max Resolution | 1ft/min |
| Air Velocity (km/h) | 1.0 to 126.0km/h |
| Air Velocity (km/h) Basic Accuracy | ±2% of reading |
| Air Velocity (km/h) Max Resolution | 0.1km/h |
| Air Velocity (knots) | 0.6 to 68knots |
| Air Velocity (knots) Basic Accuracy | ±2% of reading |
| Air Velocity (knots) Max Resolution | 0.1knots |
| Air Velocity (m/s) | 0.4 to 35m/s |
| Air Velocity (m/s) Basic Accuracy | ±2% of reading |
| Air Velocity (m/s) Max Resolution | 0.1m/s |
| Air Velocity (mph) | 0.7 to 78.2MPH |
| Air Velocity (mph) Basic Accuracy | ±2% of reading |
| Air Velocity (mph) Max Resolution | 0.1MPH |
| Memory | 20M data records using 2G SD card |
| Temperature (Air) | 32 to 158 °F (0 to 70 °C) |
| Temperature (Air) Basic Accuracy | ±1.5°F/0.8°C (<60°C) |
| Temperature (Air) Max Resolution | 0.1 ° |
| Temperature (Type J) Basic Accuracy | -148 to 2192 °F (-100 to 1200 °C) |
| Temperature (Type J) Max Resolution | ±(0.4% + 1.8°F/1°C) |
| Temperature (Type K) Basic Accuracy | 0.1° |
| Temperature (Type K) Max Resolution | -148 to 2372 °F (-100 to 1300 °C) |
| Temperature (Type N) | ±(0.4% of reading + 1.8°F/1°C) |
| Temperature (Type N) Basic Accuracy | 0.1° |
| Certifications | CE |
| Dimensions | 7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 3 years |
| Weight | 17.2oz (487g) |
