HB-CCD-B

Details
Category: Brinell / Rockwell / Vickers / Hardness Tester
HB-CCD-B Brinell Measuring Software
Brinell Measuring Software

This system include the electronic or digital Brinell hardness tester and Brinell measurement software, hardness indentation could be fast read to the computer by portable microscope; only needed to use keyboards and mouse, after the software automatically calculates that can complete the test require- ments, can improves working efficiency, it is a perfect solution to test hardness value.

Main function and features:

  • Standard configuration: BRINELL hardness measurement software, dongle, HD CCD, USB data trans mission line, computer equipment (optinal)

  • Image analysis software can be customized for kinds of functions, completed, handy operation and meet most customers’ demands

  • It can enlarge the indentation image measurement, and can be amplified again for diagonal part to avoid manual error.

  • It can automatic to identify the indentation image and measure the indentation diameter for bright and clear sample surface

  • Real time display the indentation diameter, hardness value, indentation depth, material strength, conversion hardness value and etc.

  • It possesses the unique mark positioning function, testing the positioned point hardness value..

  • It can be adjusted the color, gray, contrast ratio, lightness of the image.

  • Attached with function of indentation tangency fine tuning, length measurement and angle measurement etc.

  • It possesses the function of test result statistical analysis, automatic generation and export for the format of Word, and Excel of hardness measurement analysis report, and save the indentation image, print etc.

  • Support WINXP,WIN7,WIN10, 32 & 64 bit operation system.



    • Model BHT-3000E BHT-3000D
    Brinell scale HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
    Test force 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N),
    250kgf(2452N), 500kgf(4003N), 750kgf(7355N),
    1000kgf(8907N), 1500kgf(1471N), 3000kgf(29420N)
    LCD Screen size none 118x99mm
    Minimum measuring unit 0.005mm 0.00125mm
    Measuring range 8–650HBW
    Hardness value read Check table Digital LCD
    Hardness range 8-650HBW
    Total amplification 20X
    Load method Automatic(load, dwell, unload)
    Dwell time 1-99s (each step 1s)
    Max height allowed 220mm
    Throat depth 120mm
    Instrument size and weight 530x187x758mm (LxWxH)
    135kg
    Package size and weight 625x430x950mm (LxWxH)
    149kg
    Power supply AC220V + 5%, 50–60 Hz
    AC110V available
    Executive standard ASTM E10, ISO 6506, JJG150, GB/T231.2 inspection rules
    Standard accessories Hardness tester; 20X measuring objective; 82.5, 85, 810mm harden alloy indenter;
    big, medium and "V" test table; power cable; accessory box; dust-proof cover;
    manual instruction; 2 pieces Standard hardness block
    Optional accessories Hardness measurement software (HB-CCD-B); computer; printer;
    standard indenter; standard block.

    BHT-3000E

    Details
    Category: Brinell / Rockwell / Vickers / Hardness Tester
    BHT-3000E Electronic
    Electronic

    Electronic Brinell hardness tester remove the original weight loaded, adopt closed loop sensor control technology, higher accuracy and repeatability, stable performance, the machine appearance is beautiful, has a high performance, are widely used in the factory workshop and laboratory

    Main function and features:

  • Equipped with sophisticated sensors and a microcomputer control system, dynamic force value fluctuation is less than 1/1000, test results are more accurate.

  • It possesses the 10 grades test force, it can test 10 Brinell scales, with wider test range.

  • Equipped with high performance of servo motor which automatically load/unloading, it cause the less noise when do test.

  • The outer shell of machine is formed of special founding unibody cast technology, stable structure, it is not easy to be out of shape, can work under relatively harsh environment.

  • With pure white car painting with a classy look, have scratch resistance ability, it’s still brightness used for years

  • This machine can connect to Brinell image software, improving the efficiency.



    • Model BHT-3000E BHT-3000D
    Brinell scale HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
    Test force 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N),
    250kgf(2452N), 500kgf(4003N), 750kgf(7355N),
    1000kgf(8907N), 1500kgf(1471N), 3000kgf(29420N)
    LCD Screen size none 118x99mm
    Minimum measuring unit 0.005mm 0.00125mm
    Measuring range 8–650HBW
    Hardness value read Check table Digital LCD
    Hardness range 8-650HBW
    Total amplification 20X
    Load method Automatic(load, dwell, unload)
    Dwell time 1-99s (each step 1s)
    Max height allowed 220mm
    Throat depth 120mm
    Instrument size and weight 530x187x758mm (LxWxH)
    135kg
    Package size and weight 625x430x950mm (LxWxH)
    149kg
    Power supply AC220V + 5%, 50–60 Hz
    AC110V available
    Executive standard ASTM E10, ISO 6506, JJG150, GB/T231.2 inspection rules
    Standard accessories Hardness tester; 20X measuring objective; 82.5, 85, 810mm harden alloy indenter;
    big, medium and "V" test table; power cable; accessory box; dust-proof cover;
    manual instruction; 2 pieces Standard hardness block
    Optional accessories Hardness measurement software (HB-CCD-B); computer; printer;
    standard indenter; standard block.

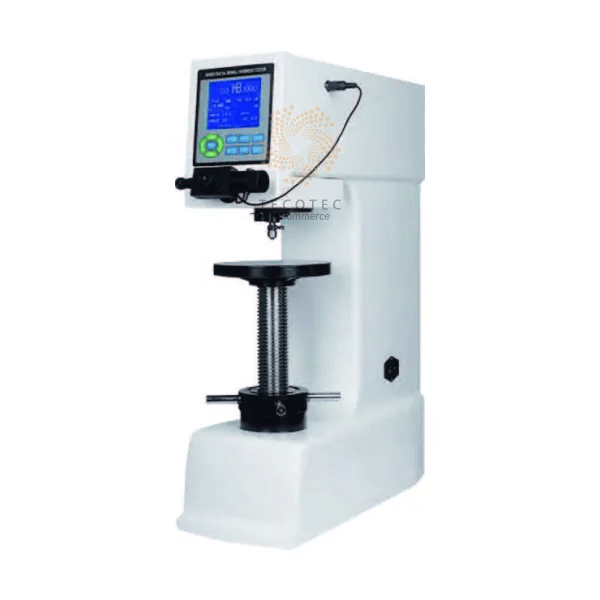

    BHT-3000D

    Details
    Category: Brinell / Rockwell / Vickers / Hardness Tester
    BHT-3000D Digital
    Digital

    Digital universal hardness tester has high degree of automation, stable and reliable performance, equipped with sophisticated sensors, test is more accurate; 5.6 inch industry screen provide comprehensive data for quality control, through hardness transmission software export test data into the computer conveniently, easy to long term preservation.

    Main function and features:

  • Able to meet Rockwell and small load Brinell and Vickers hardness test requirements, it’s convenient for user to test a variety of materials at the same time.

  • Equipped with sophisticated sensors, test results are more accurate, the leading variable load structure design, can easily switch test force, high test precision, good repeatability.

  • The main components adopt brand such as American 3M, Allegro, Japan Omron and NKK, to ensure the equipment running stably for a long time

  • Equipped with digital display micrometer eyepiece and data computing systems accurate to 0.01 um, only gently touch, can directly show the Brinell or Vickers hardness value.

  • It is automatic to test when the working platform lifting up to some height, then indicate Rockwell hardness value and various testing data directly.

  • Both Chinese and English operation interface are simple and intuitive, can set the test method quickly, the control system is more stable after upgraded.

  • The industry LCD screen can be visual display hardness value, hardness unit, conversion hardness, testing force, indenter type, the required minimum thickness, load time, measurement times, and the test process is intuitive and clear, built-in printer can print out measured times, hardness value, average, maximum and minimum values, range for the customer to archive

  • Optional data transfer software, through RS232 interface will transfer host measurement data to the computer to edit and save

  • The shell is one piece casting molding with special foundry process, stable structure and no deformation, can work under relatively harsh environment.

  • Pure white car painting with a classy look, have scratch resistance ability, it’s still brightness used for years



    • Model BHT-3000E BHT-3000D
    Brinell scale HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
    Test force 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N),
    250kgf(2452N), 500kgf(4003N), 750kgf(7355N),
    1000kgf(8907N), 1500kgf(1471N), 3000kgf(29420N)
    LCD Screen size none 118x99mm
    Minimum measuring unit 0.005mm 0.00125mm
    Measuring range 8–650HBW
    Hardness value read Check table Digital LCD
    Hardness range 8-650HBW
    Total amplification 20X
    Load method Automatic(load, dwell, unload)
    Dwell time 1-99s (each step 1s)
    Max height allowed 220mm
    Throat depth 120mm
    Instrument size and weight 530x187x758mm (LxWxH)
    135kg
    Package size and weight 625x430x950mm (LxWxH)
    149kg
    Power supply AC220V + 5%, 50–60 Hz
    AC110V available
    Executive standard ASTM E10, ISO 6506, JJG150, GB/T231.2 inspection rules
    Standard accessories Hardness tester; 20X measuring objective; 82.5, 85, 810mm harden alloy indenter;
    big, medium and "V" test table; power cable; accessory box; dust-proof cover;
    manual instruction; 2 pieces Standard hardness block
    Optional accessories Hardness measurement software (HB-CCD-B); computer; printer;
    standard indenter; standard block.

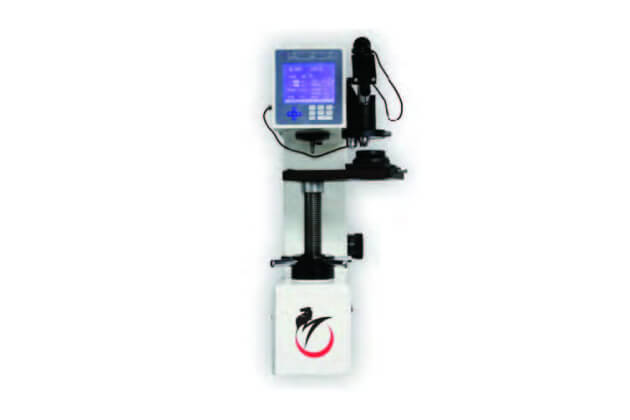

    BRV-9000D

    Details
    Category: Brinell / Rockwell / Vickers / Hardness Tester
    BRV-9000D (Digital)
    (Digital)

    Digital universal hardness tester has high degree of automation, stable and reliable performance, equipped with sophisticated sensors, test is more accurate; 5.6 inch industry screen provide comprehensive data for quality control, through hardness transmission software export test data into the computer conveniently, easy to long term preservation.

    Main function and features:

  • Able to meet Rockwell and small load Brinell and Vickers hardness test requirements, it’s convenient for user to test a variety of materials at the same time.

  • Equipped with sophisticated sensors, test results are more accurate, the leading variable load structure design, can easily switch test force, high test precision, good repeatability.

  • The main components adopt brand such as American 3M, Allegro, Japan Omron and NKK, to ensure the equipment running stably for a long time

  • Equipped with digital display micrometer eyepiece and data computing systems accurate to 0.01 um, only gently touch, can directly show the Brinell or Vickers hardness value.

  • It is automatic to test when the working platform lifting up to some height, then indicate Rockwell hardness value and various testing data directly.

  • Both Chinese and English operation interface are simple and intuitive, can set the test method quickly, the control system is more stable after upgraded.

  • The industry LCD screen can be visual display hardness value, hardness unit, conversion hardness, testing force, indenter type, the required minimum thickness, load time, measurement times, and the test process is intuitive and clear, built-in printer can print out measured times, hardness value, average, maximum and minimum values, range for the customer to archive

  • Optional data transfer software, through RS232 interface will transfer host measurement data to the computer to edit and save

  • The shell is one piece casting molding with special foundry process, stable structure and no deformation, can work under relatively harsh environment.

  • Pure white car painting with a classy look, have scratch resistance ability, it’s still brightness used for years



    • Model BRV-9000E BRV-9000D
    Loading method Full automatic (load, dwell, unload)
    Dwell time 1~60 S 1~99S
    Brinell scale HBW2.5/31.25, HBW2.5/62.5, HBW5/62.5, HBW2.5/187.5
    Rockwell scale HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR
    Vickers scale HV30, HV80, HV100
    Conversion scale HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
    Initial test force 10Kg(98.0N)
    Test force 30Kg(294.7N), 31.25Kg(306.3N), 60Kg(588N), 62.5Kg(612.9N), 100Kg(980N), 150Kg(1471N), 187.5Kg(1839N). Test error ±10%
    LCD Screen size none 118x99mm
    Resolution ratio 0.5HR 0.1HR
    Amplification of microscope 37.5X, 75X
    Hardness value range 20-88HRA, 20-100HRB, 20-70HRC, 8-650HB, 8-3000HV
    Hardness value read Rockwell: Dial, Brinell and Vickers: look up table Big digital LCD
    Specimen maximum height allowed Rockwell: 170mm
    Brinell & Vickers: 140mm (Throat depth:130mm)
    Size and weight Instrument: 460×160×660mm (L×W×H), 85kg
    Package: 625×450×800mm (L×W×H), 100kg
    Power supply AC220V + 5%, 50–60 Hz
    Data output none Built-in printer, RS-232 interface (Export data to the computer for long time preservation)
    Executive standard ASTM E18, ISO 6508, JJG112, JJG150, JIS B-7734, GB/T230.2, GB/T231.2, GB/T4340.2
    Standard accessories Hardness tester; 15x reading microscope; 2.5x, 5x object lens; Rockwell diamond indenter; Vickers diamond indenter; #1.58mm, 9.2cm/s, #5mm, head alloy ball indenter; large medium, "U" shape, and slide test platform; accessory box; dust-proof cover; power cable; manual instruction; 5 pieces #1.58mm steel ball; hardness block
    Optional accessories Data transmission software, hardness measurement software, computer, printer, standard hardness block, standard indenter
    1. BRV-9000E
