In 1978, Swiss Dr. Leeb proposed a brand-new hardness test method. Under the action of elastic force, an impact body of speci- fied quality was used to impact the surface of the sample at a certain speed, and the rebound speed of the punch at 1mm from the surface of the sample The hardness value is calculated by the ratio of the electromagnetic principle to the impact speed. Calculated formula as follows: HL=1000×VB/ VA

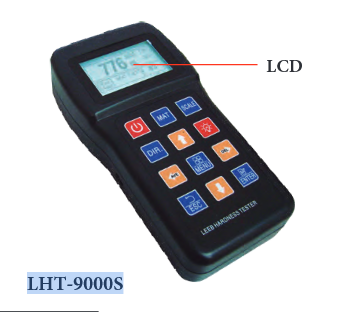

| Model |  LHT-9000S |

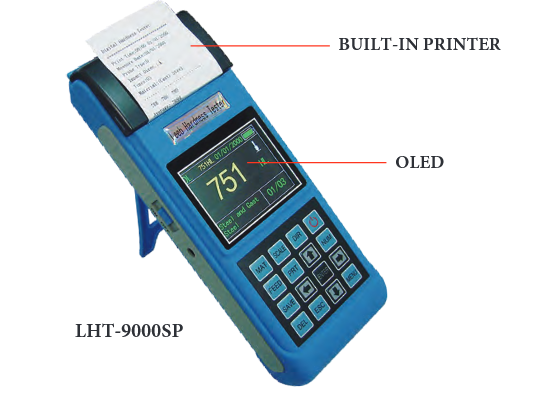

LHT-9000SP |
|---|---|---|
| Screen display | 128×64 dot matrix LCD adjustable backlight | 128×64 dot matrix high-brightness color OLED |
| Impact ball head | Φ3mm Material: Tungsten Carbide Hardness 1600HV | |
| Test accuracy | Indication error ±6HLD Repeatability 6HLD (standard block hardness value 800HLD) |
|
| Testing frequency | MIN > 3 times and calculate the average value as the reference of the test value | |
| Indentation distance |
> 3mm (center distance) > 5mm (center to edge) |
|
| Indentation size |
Φ0.54mm D24μm (≥300HV) Φ0.54mm D17μm (≥600HV) Φ0.35mm D10μm (≥800HV) |
|
| Data storage | Built-in Max 600 group | |
| Printing device | NONE | Built-in printer |
| Print function |
Operation information, number, time, date, impact direction, average number of times, material, test value, average |
|
| Data output | USB 2.0 interface and software | |
| Software function |
Transmission of test results, test value storage management, numerical statistical analysis, test result report (optional accessory) |
|
| Tolerance setting | The upper and lower limits of the hardness value can be set | |
| Power supply | 1.5V battery 200 hours working time | Rechargeable battery 150 hours working time |
| Environmental requirements |
No vibration, no strong magnetic field, no corrosive medium, no serious dust and oil pollution |
|
- Details
- Category: Leeb Hardness Tester
Leeb hardness tester is a miniature portable hardness tester, it can be simple, lightweight, fast, no damage, high accuracy hardness measure- ment of the commonly used metal materials, mechanical parts, heavy workpiece etc, Can be used for laboratory, Quality control department, more portable to carry to any environmental of work site to operation
Fully in meets with ASTM-A956-06 international testing standards, can be widely used in aerospace, automobile and motorcycle industry, mold, machinery manufacturing, metal processing industry, electronics, petroleum and chem- ical industry and other areas of hardness testing.
| Intelligent detection | Three button menu simple operation interface, can directly display a variety of test parameters Conditions, status and results. |
|---|---|
| Compact and portable | Instrument lightweight, portable, integrated design, without any cable, to enhance the convenience and reliability |
| Excellent screen | Industrial high-brightness OLED display, clear and bright font, whether in dark or sunny environment, the screen is still clearly visible |
| Accurate measurement | High-precision measurement of circuit components and impact device mechanism to ensure that the test error of ± 0.5%, repeatability of 0.8% (HLD=800) |
| Hardness Parameters | HL HRA HRB HRC HB HS HV |
| Large capacity | Can store 300 sets of hardness test data, each storage data included in the number of measurement. the average, test direction, test materials, hardness parameters and other information. |
| Testing Materials | Steel, Cast steel, Cwt.steel, Alloy tool steel, Stainless steel, Gc.iron, Nc.iron, Cast aluminum, Copper-zinc, Copper-aluminum, Worught copper, Forged steel, etc. |
| Test direction | Can support the test direction of 360 degrees, such as: vertical down, oblique, horizontal, oblique, vertical and other directions can be normal to test |
| Testing Range | HL(170-960) HRA(59.1-88) HRB(13.5-101.7) HRC(17.9-69.5) HB(19-683) HS(30.6-102.6) HV(80-1042) |
| Test conditions | Maximum hardness 940HV, surface roughness: Ra1.6um, minimum weight:> 5kg (direct test), 2-5kg (need to support solid), 0.05-2kg (need to Vaseline close), the minimum thickness: 5mm ( Need to Vaseline close), the surface hardening layer minimum depth: 0.8mm |
| Instrument calibration | Built-in instrument calibration function, with Leeb standard hardness block (optional), to compare the test results. |
| Impact ball | Hardness: 1600HV, diameter: 3mm, material: tungsten carbide |
| Rechargeable power | Supply USB power socket and built-in rechargeable lithium battery, continuous working time: 20 hours |
| Operating environment | Operating temperature: -10 to 50°C, storage temperature: -30 to 60°C, relative humidity: ≦ 90% |
| Overal Dimensions | 148*32*26mm(L*W*T) |
 |
