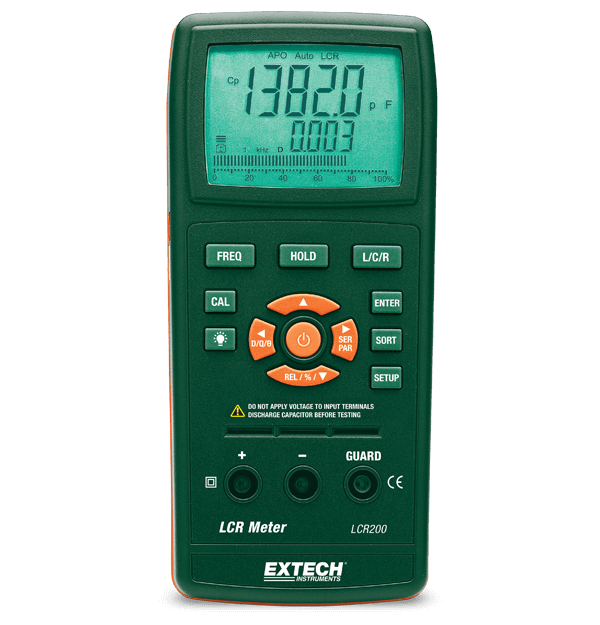

The LCR200 is a passive component LCR meter. Discover the excellent value with a variety of features that allow this meter to produce the precise measurements you require. On the high contrast backlit display, the primary parameter is displayed simultaneously in 20,000/2,000 count increments. Hi/Lo limits can be specified using absolute or percentage values. Open and Short Zero eliminates stray impedances from the measurement. Use the built-in test fixture or the external test leads (provided). The LCR200 offers an Auto Power Off option that can be turned off, as well as a low battery indicator that alerts you when the batteries need to be replaced. Complete with test leads and a 9V battery.
| Capacitance | 20pF, 200pF, 2000pF, 20.000nF, 200.00nF, 2000.0nF, 20.000µF, 200.00µF, 2.0000mF, 20.00mF |
|---|---|
| Dissipation Factor (DF) | 0.000 to 1999 |
| Inductance | 20µH, 200µH, 2000.0µH, 20.0000mH, 200.00mH, 2000.0H, 20.000H, 200.00H, 2000.0H |
| Inductance Basic Accuracy | ±(0.5% of reading + 5 digits) |
| Phase | ±90° |
| Quality Factor (Q) | 0.000 to 1999 |
| Resistance | 20.00Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ, 200.0MΩ |
| Test Frequency | 100Hz/120Hz/1kHz/10kHz/100kHz |
| Certifications | CE |
| Dimensions | 7.6 × 3.5 × 1.6" (193 × 88 × 41mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 14.8oz (420g) |
