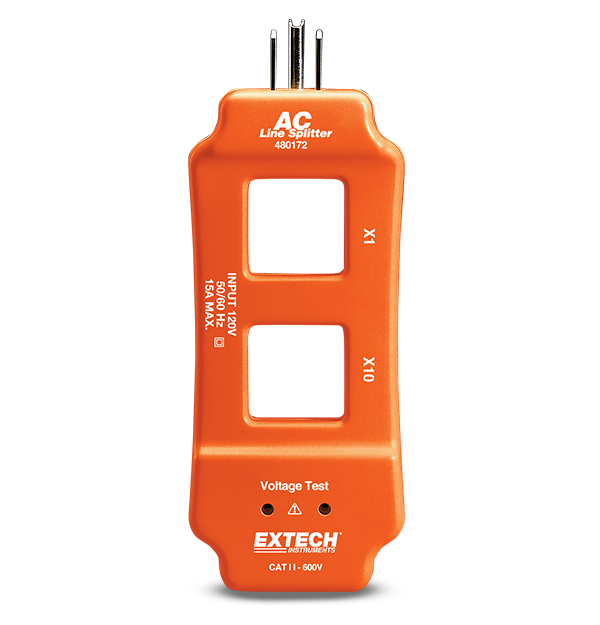

This Extech 480172 Line Splitter allows you to "open" ordinary 120 Volt AC electrical lines quickly and easily, without having to cut the plug and separate the conductors. When connected between a 120 Volt AC outlet and an item under test, this splitter separates the hot/live conductor from the neutral and ground, allowing users to measure AC current up to 15 Amp on two or three-wire lines using a clamp meter. This splitter also has two Voltage Test connectors, which allow you to monitor voltage with a multimeter.
| Voltage | 120V +/-10%) |
|---|---|
| Current | 15Amps max |
| Temperature | Operating; 41ºF to 104ºF (5ºC to 40ºC) Storage; ‐4ºF to 140ºF (‐20ºC to 60ºC) |
| Humidity | Operating; Max 80% up to 87ºF (31ºC) decreasing linearly to 50% at 104ºF (40ºC), Storage;80%. |
| Altitude | Operating; 7000ft. (2000) meters maximum. |
| Dimensions: | 5.25 x 2 x 1” (133 x 51 x 25mm) |
| Weight | 0.753lb (342g) (includes holster). |
| Safety | For indoor use and in accordance with the requirements for double insulation to EC1010‐1 (1995): EN61010‐1 (1995) Overvoltage Category II, Pollution Degree 2 |
