- Details
- Category: Ultrasonic Wall Thickness Gauges

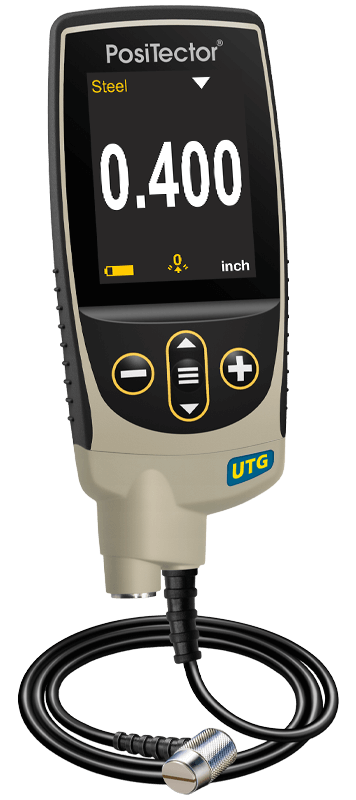

Precision ultrasonic thickness meters are intended for high-resolution measurements on thin materials such as metals and polymers. Automatic Multi-Echo mode gives the highest accuracy on thin metals.
| Probe Model UTG P | |
|---|---|
| Probe Type: | 15 MHz Single Element Delay Line |
| Thru-Paint Capability: | Yes |
| *Measurement Range - Steel |
0.008" to 0.475" 0.2 mm to 12.0 mm |
| *Measurement Range - Plastic |
0.005" to 0.165" 0.125 mm to 4.500 mm |
| Resolution: | 0.001” 0.01 mm |
| *Accuracy: | ±0.0004” ±0.01 mm |
*Measurement range is for carbon steel and depends upon surface condition, temperature, and material.
- Details
- Category: Ultrasonic Wall Thickness Gauges

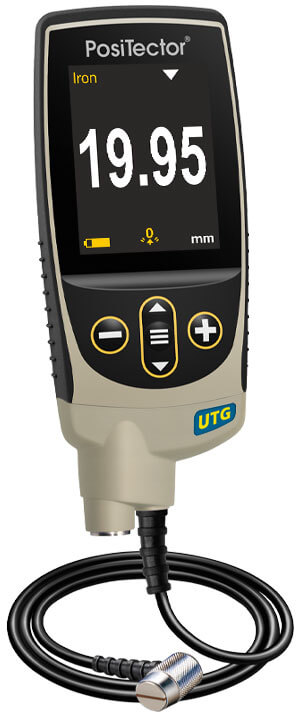

Low frequency ultrasonic thickness probes are used to measure the wall thickness of attenuative materials such cast/ductile iron, cast aluminum, and cast zinc.
| Probe Model UTG CLF | |
|---|---|
| Probe Type: | 2.25 MHz Dual Element |
| Thru-Paint Capability: (Multiple Echo): |
No |
| *Measurement Range - Single Echo: |
0.080” to 5.000” 2.00 to 125.00 mm |
| Resolution: | 0.001” 0.01 mm |
| *Accuracy: | ±0.001” ±0.03 mm |
*Measurement range is for carbon steel and depends upon surface condition, temperature, and material.
- Details
- Category: Ultrasonic Wall Thickness Gauges
The Ultrasonic Thickness Tester has Thru-Paint functionality, which allows you to rapidly and accurately test the metal thickness of a painted structure without having to remove the covering. Ideal for measuring blasted materials and other applications that require a more resilient wear face.
| Probe Model UTG M | |
|---|---|
| Probe Type: | 5 MHz Dual Contact |
| Thru-Paint Capability: | Yes |
| *Measurement Range - Single Echo: |
0.100” to 5.000” 2.50 to 125.00 mm |
| *Measurement Range - Multiple Echo: |
0.100” to 2.500” 2.50 to 60.00 mm |
| Resolution: | 0.001” 0.01 mm |
| *Accuracy: | ±0.001” ±0.03 mm |
*Measurement range is for carbon steel and depends upon surface condition, temperature, and material.
- Details
- Category: Ultrasonic Wall Thickness Gauges
Ultrasonic technology is used to measure the wall thickness of materials such as steel and plastic. Ideal for assessing the impacts of corrosion or erosion on tanks, pipes, or any structure with limited access to one side. Multiple echo (UTG M) Thru-Paint models determine the metal thickness of a painted structure without removing the covering.
 |
