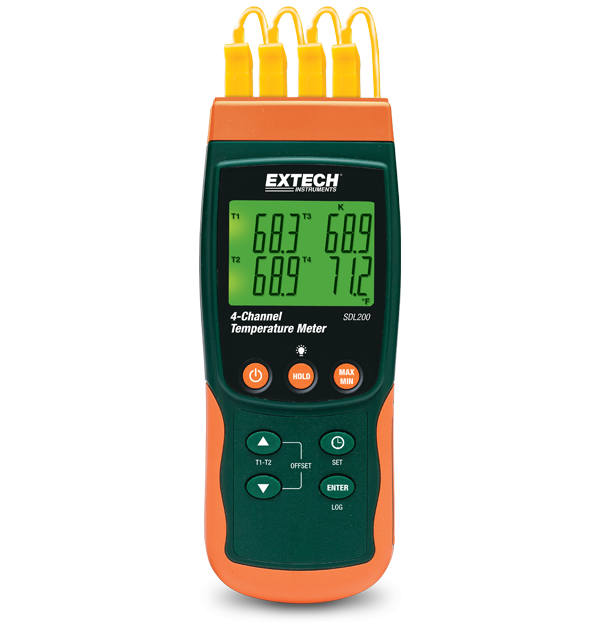

The SDL200 saves data to an SD card in Excel format. 4-channel datalogging with six thermocouple types (J, K, E, T, R, and S) and 2-channel datalogging with RTD (Pt100Ohm) probes. Readings are displayed as [T1, T2, T3, T4] or differential [T1-T2]. Offset adjustment is used for the zero function to provide relative measurements. Stores 99 manual readings and 20M readings on a 2GB SD card. Readings are recorded with an accurate date and time stamp. The sample rate can be set by the user between 1 and 3600 seconds. Minimum/Maximum, Data Hold, and Auto Power Off. Comes includes 6 AA batteries, four general-purpose Type K bead wire temperature probes, an SD card, and a protective carrying bag.
| Memory | 20M data records using a 2G SD card |
|---|---|
| Temperature (RTD) Basic Accuracy | -327 to 1562 °F (-200 to 850 °C) |
| Temperature (RTD) Max Resolution | ±0.4% of reading (+1.8°F/+1°C) |
| Temperature (Type C) | 0.1°/1° |
| Temperature (Type E) Basic Accuracy | -58 to 1652°F (-50 to 900°C) |
| Temperature (Type E) Max Resolution | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature (Type J) | 0.1°/1° |
| Temperature (Type J) Basic Accuracy | -148 to 2102°F (-100 to 1150°C) |
| Temperature (Type J) Max Resolution | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature (Type K) Basic Accuracy | 0.1°/1° |
| Temperature (Type K) Max Resolution | -148 to 2372°F (-100 to 1300°C) |
| Temperature (Type N) | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature (Type N) Basic Accuracy | 0.1°/1° |
| Temperature (Type R) Max Resolution | 32 to 3092°F (0 to 1700°C) |
| Temperature (Type S) | ±0.5% of reading (+2 °F/+1 °C) |
| Temperature (Type S) Basic Accuracy | 0.1°/1° |
| Temperature (Type S) Max Resolution | 32 to 2732°F (0 to 1500°C) |
| Temperature (Type T) | ±0.5% of reading (+2 °F/+1 °C) |
| Temperature (Type T) Basic Accuracy | 0.1°/1° |
| Temperature (Type T) Max Resolution | -58 to 752°F (-50 to 400°C) |
| Temperature [IR] | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature [Type K] | 0.1°/1° |
| Certifications | CE |
| Dimensions | 7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 3 years |
| Weight | 17.6oz (500g) |
