Material Hardness Testers

Details: Category: Material Hardness Testers

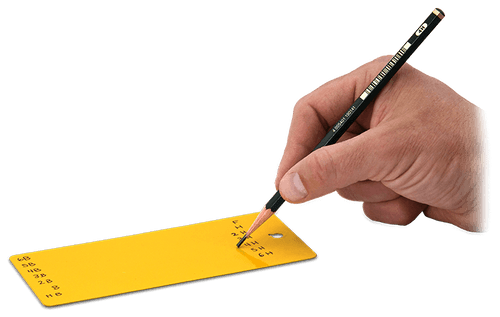

PosiTest® PT Pencil Hardness Test — Pencil Hardness Test

The film's hardness is determined using the Wolff-Wilborn pencil test in line with ISO 15184 and ASTM D3363.

Quickly and easily evaluate the scratch resistance and relative hardness of coatings

14 quality graphite pencils—6B to 6H hardness values in a protective case

Custom aluminum pencil sharpener specifically designed for the Pencil Hardness Test—includes 5 and 6 mm reference marks for precision graphite length

Comes complete with everything needed for testing

Optional Pencil Cart exerts a constant force of 7.35 N (~1.65 lbf) at the specified 45° angle (included with Complete Kit)

Conforms to ISO 15184, ASTM D3363, JIS K-5600, BS 3900-E19, MIL C 27 227, ECCA-T4-1, SNV 37113, SIS184187, NEN 5350

Details: Category: Material Hardness Testers

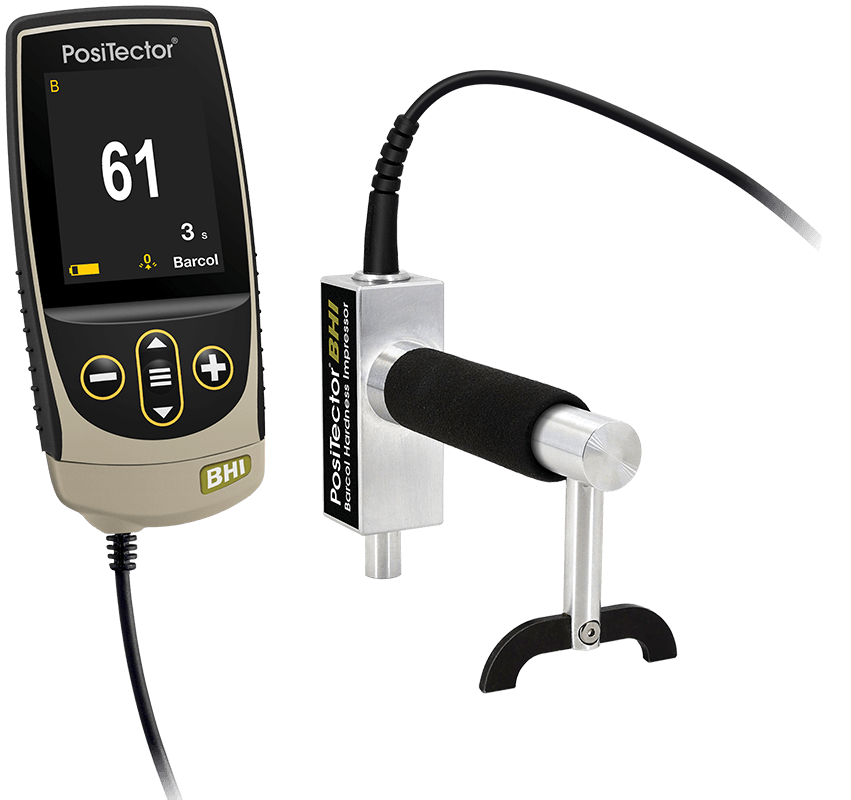

PosiTector® BHI Barcol Hardness Impressor — Barcol Hardness Impressor

Measures the hardness of mild metals like aluminum, aluminum alloys, copper, brass, and other materials including harder plastics and fiber-reinforced plastics.

Easy-to-read digital display

Comparable to 934-1 Barcol Hardness Tester

Large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation

Weatherproof, dustproof, and water-resistant—IP65-rated enclosure

PosiTector interchangeable platform—attach any PosiTector probe to a single gage body

USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software

Certificate of Calibration included

Conforms to ASTM B648/D2583, DIN EN 59, and AS/NZS 3572.22

Specifications

Measurement Range	20 – 100 Barcol
Accuracy	± 2 Barcol
Resolution	0.1 Barcol
Size*	127 x 66 x 25.4 mm (5" x 2.6" x 1")
Weight*	137 g (4.9 oz.) without batteries
Probe Size	145 x 97 x 64 mm (5.7" x 3.8" x 2.5")
Probe Headroom	140 mm (5.5")
Probe Weight	400 g (14.1 oz.)

* Size and weight are for the PosiTector gage body only and do not include the probe

Details: Category: Material Hardness Testers

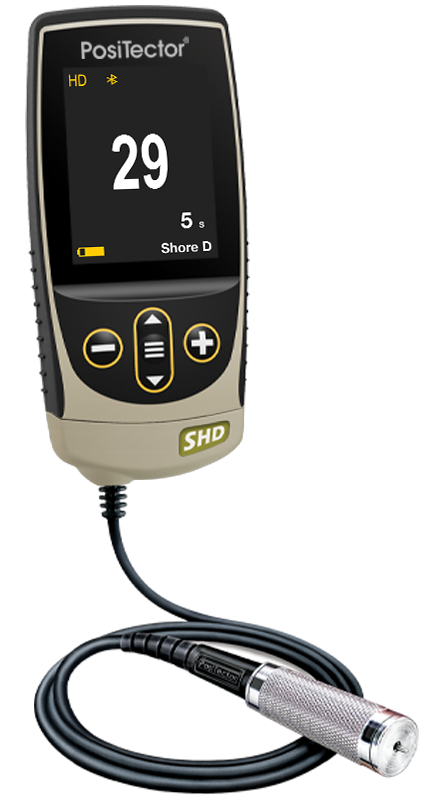

PosiTector® SHD Shore Hardness Durometers for the indentation hardness of non-metallic materials — Shore Hardness Durometers for the indentation hardness of non-metallic materials

Nonmetallic materials' indentation hardness is measured using a handheld electronic equipment. Two durometer types are provided for various hardness ranges: Shore A and Shore D.

User-adjustable measurement time with on-screen countdown to conform to national and international standards

Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards

Large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation

Weatherproof, dustproof, and water-resistant—IP65-rated enclosure

PosiTector interchangeable platform—attach any PosiTector probe to a single gage body

USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software

Certificate of Calibration showing traceability to NIST included (Long Form)

Conforms to ASTM D2240, ISO 868/7267/7619, and DIN 53505

Specifications

Measurement Range	0 – 100
Accuracy	± 1
Resolution	0.1
Body Size	127 x 66 x 25.4 mm (5" x 2.6" x 1")
Weight*	137 g (4.9 oz.) without batteries

* Size and weight are for the PosiTector gage body only and do not include the probe
