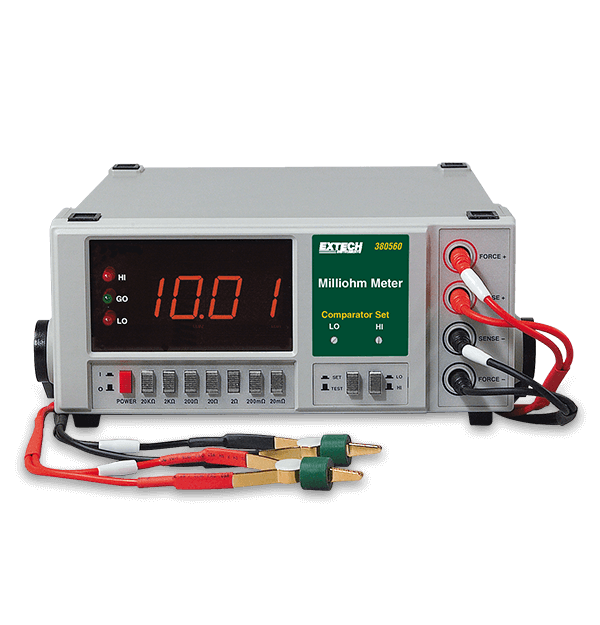

The 380560 benchtop meter uses 4-wire Kelvin clip test leads and has a resolution of 0.01mΩ. The device comes with a power cord, 4-wire cables with Kelvin clip connections, and a 1999 count display with 0.8" digits. It also has a built-in comparator for Hi/Lo/Go resistance testing or selecting.
| Specifications | Range | Resolution | Current | Accuracy (%rdg) |
|---|---|---|---|---|
| Resistance | 20m | 0.01m | 1A | ±(0.2% + 6d) |
| 200m | 0.1mtd | 1A | ±(0.2% + 4d) | |
| 2 | 0.001> | 100mA | ±(0.2% + 4d) | |
| 20 | 0.01> | 10mA | ±(0.2% + 4d) | |
| 200 | 0.1> | 1mA | ±(0.2% + 4d) | |
| 2k | 0.001k> | 100μA | ±(0.2% + 4d) | |
| 20k | 0.1k> | 10μA | ±(0.2% + 4d) | |
| Power | 110VAC, 60Hz or 220VAC 50Hz | |||
| Dimensions/Weight | 11 x 8.3 x 3.5" (280 x 210 x 90mm)/ 4.85lb (2.2kg) |
