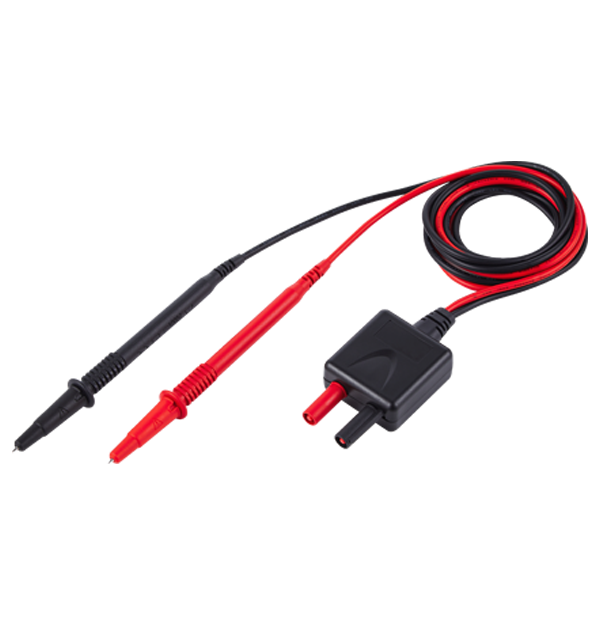

PV Test leads for CAT III allow you to safely measure up to 1500 V using the CM276 IGM Clamp Meter with Thermal Camera. DC power measurement should be done safely in solar photovoltaic (PV) systems. Troubleshoot and maintain PV systems by testing solar panels and inverters. The leads consist of two male test tips connected to a 4 mm (0.15 in) encased banana plug on 127 cm (5 in) test lines.
| Length | 144 cm (56 in) |
|---|---|
| What is in the box? | PV Test leads Quick Start Guide |
| Product Warranty | 3-Year |
| Input impedance | 10 MΩ |
| Product Certifications | cULus, CE, UKCA |
| Over-voltage category | CAT II 1500 V CAT III 1500 CAT IV 1000 V |
