KEY FEATURES
Up to 640 * 480 IR resolution.
30Hz Frame Rate.
-20 ~ 2000°C Temperature Range.
±2℃ or ±2% Measurement Accuracy.
Open source API software FOTRIC SDK
TECHNICAL SPECS
| Model |

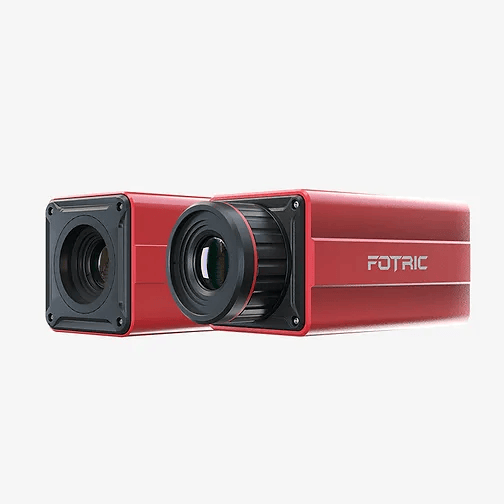

FOTRIC 628CH |
| Infrared Resolution |
640*480 |
| Focus Type |
Automatic |
| Thermal Sensitivity（NETD) |
＜0.03℃@30℃ |
| Temperature Measurement Range |
-20℃-150℃; 0℃-650℃; 300℃-2000℃ |
| User-definable Markers |
5 spot markers; 10 (rectangle or circle); 10 measurement lines |
| Accuracy |
± 2 °C or ± 2 %, whichever is greater |
| Support Radiometric Stream |
25Hz radiometric stream |
| Palettes |
10 standard palettes and 10 inverted palettes |
| Pan-tilt-zoom station compatibility |
Support Pelco-D protocol |
| Software |
AnalyzIR; Open API FOTRIC SDK FULL SPECIFICATIONS |
