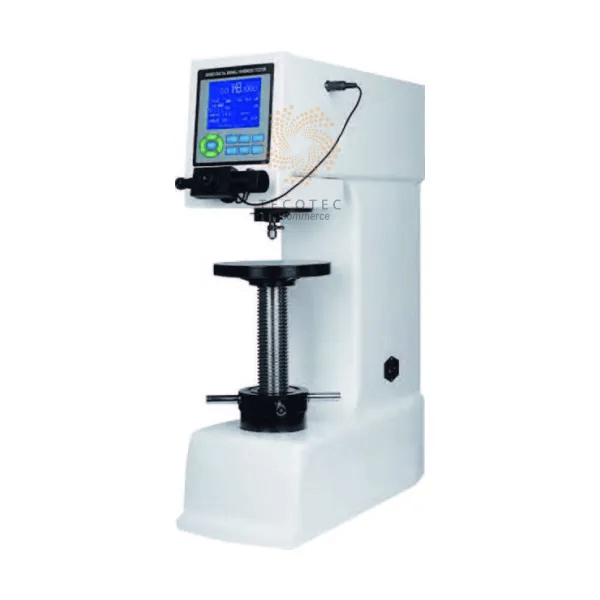

BHT-3000D

Digital universal hardness tester has high degree of automation, stable and reliable performance, equipped with sophisticated sensors, test is more accurate; 5.6 inch industry screen provide comprehensive data for quality control, through hardness transmission software export test data into the computer conveniently, easy to long term preservation.

Main function and features:

Able to meet Rockwell and small load Brinell and Vickers hardness test requirements, it’s convenient for user to test a variety of materials at the same time.

Equipped with sophisticated sensors, test results are more accurate, the leading variable load structure design, can easily switch test force, high test precision, good repeatability.

The main components adopt brand such as American 3M, Allegro, Japan Omron and NKK, to ensure the equipment running stably for a long time

Equipped with digital display micrometer eyepiece and data computing systems accurate to 0.01 um, only gently touch, can directly show the Brinell or Vickers hardness value.

It is automatic to test when the working platform lifting up to some height, then indicate Rockwell hardness value and various testing data directly.

Both Chinese and English operation interface are simple and intuitive, can set the test method quickly, the control system is more stable after upgraded.

The industry LCD screen can be visual display hardness value, hardness unit, conversion hardness, testing force, indenter type, the required minimum thickness, load time, measurement times, and the test process is intuitive and clear, built-in printer can print out measured times, hardness value, average, maximum and minimum values, range for the customer to archive

Optional data transfer software, through RS232 interface will transfer host measurement data to the computer to edit and save

The shell is one piece casting molding with special foundry process, stable structure and no deformation, can work under relatively harsh environment.

Pure white car painting with a classy look, have scratch resistance ability, it’s still brightness used for years

Model	BHT-3000E	BHT-3000D
Brinell scale	HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Test force	62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4003N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(1471N), 3000kgf(29420N)
LCD Screen size	none	118x99mm
Minimum measuring unit	0.005mm	0.00125mm
Measuring range	8–650HBW
Hardness value read	Check table	Digital LCD
Hardness range	8-650HBW
Total amplification	20X
Load method	Automatic(load, dwell, unload)
Dwell time	1-99s (each step 1s)
Max height allowed	220mm
Throat depth	120mm
Instrument size and weight	530x187x758mm (LxWxH) 135kg
Package size and weight	625x430x950mm (LxWxH) 149kg
Power supply	AC220V + 5%, 50–60 Hz AC110V available
Executive standard	ASTM E10, ISO 6506, JJG150, GB/T231.2 inspection rules
Standard accessories	Hardness tester; 20X measuring objective; 82.5, 85, 810mm harden alloy indenter; big, medium and "V" test table; power cable; accessory box; dust-proof cover; manual instruction; 2 pieces Standard hardness block
Optional accessories	Hardness measurement software (HB-CCD-B); computer; printer; standard indenter; standard block.
