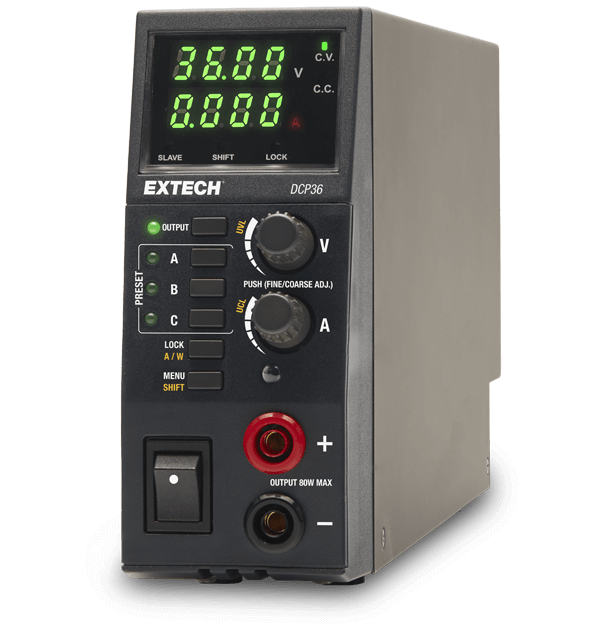

Extech's DCP36 power supply offers an 80W constant power topology and autoranging voltage and current outputs. This tiny and lightweight machine is portable and excellent for workbenches with limited space. It has four-digit LED displays, three programmed presets, front and rear output terminals, and remote sensing to ensure precise applied voltage at the load point.
| Line Current Regulation | ≤10mA |
|---|---|
| Line Voltage Regulation | ≤4mV |
| Load Current Regulation | ≤10mA |
| Load Voltage Regulation | ≤30mV |
| Output Current | 0 to 5A; Autoranging with 80W maximum output power (E x I = ≤80W) |
| Output Current Basic Accuracy | ±(0.5% + 5 counts) |
| Output Voltage | 0.5 to 36V |
| Output Voltage Basic Accuracy | ±(0.5% + 5 counts) |
| Ripple and Noise | ≤35m Vp-p |
| Certifications | CE |
| Dimensions | 13 × 5 × 2" (330 × 127 × 53.5 mm) |
| Warranty | 2 years |
| Weight | 4.2 lbs (1.9 kg) |
