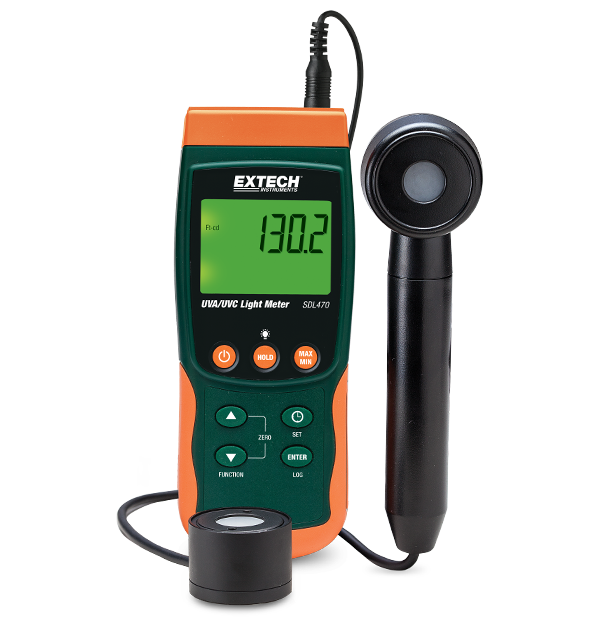

The Light Meter SDL470 is a UVA/UVC Light Meter and Data Logger. The SDL470 can measure long and short wave UV irradiance using UVA and UVC light sources, respectively. This meter has a cosine correction filter, data logging in Excel® format, offset adjustment for relative measurements, a Type-K/J thermocouple input for temperature measurements (probe sold separately), record/recall modes, min and max readings, data hold, and auto power off with disable function. This device includes a built-in tilt stand, SD memory card, UVA light sensor with protective cover, UVC light sensor, hard case, universal AC adaptor, and six AA batteries.
| Frequency Bandwidth | 365nm (UVA); 254nm (UVC) |
|---|---|
| Memory | Manual: 99 data readings; Includes SD memory card for datalogging |
| Temperature (Type J) Basic Accuracy | -148 to 2192°F (-100 to 1200°C) |
| Temperature (Type J) Max Resolution | ±(0.4%±1.8°F/1°C) |
| Temperature (Type K) Basic Accuracy | 0.1°F/°C |
| Temperature (Type K) Max Resolution | -148 to 2372°F (-100 to 1300°C) |
| Temperature (Type N) | ±(0.4%±1.8°F/1°C) |
| Temperature (Type N) Basic Accuracy | 0.1°F/°C |
| UVA | 2mW/cm², 20mW/cm² |
| UVA Basic Accuracy | ±4% full scale |
| UVA Max Resolution | 0.001mW/cm² |
| UVC | 2mW/cm², 20mW/cm² |
| UVC Basic Accuracy | ±4% full scale |
| UVC Max Resolution | 0.001mW/cm² |
| Certifications | CE |
| Dimensions | 7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 16.2oz (475g) |
