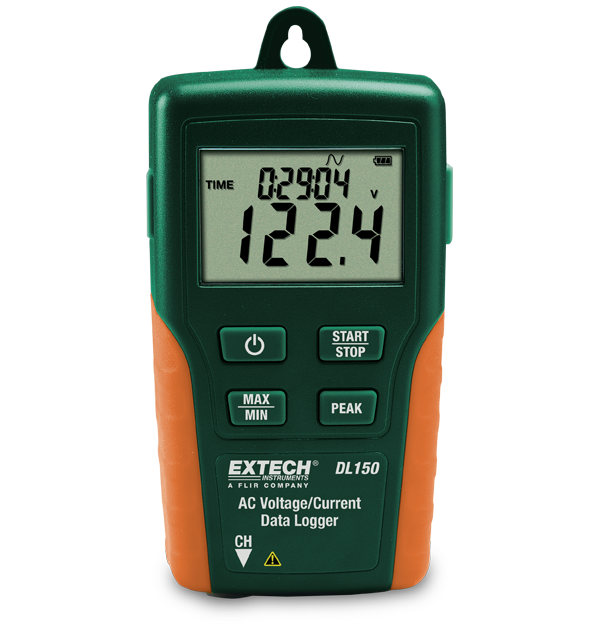

The Extech DL150 is a True RMS AC Voltage and Current Datalogger. Up to 100,000 TRMS AC Voltage (600 Volt) or Current (200 Amp) values can be recorded with a user-programmable sample rate ranging from 1 second to 24 hours. The LCD displays the time/date, current reading, min/max, and whether the user-settable high/low alerts have been exceeded. Readings can be downloaded to your computer using the USB interface. Recording modes include regular, peak, and capture (trigger level selected by the user). Comes with a current clamp, test leads, alligator clips, software, a USB cable, a 110-volt AC adapter, and four AAA batteries
| AC Current | 10 to 200A |
|---|---|
| AC Current Basic Accuracy | ±(2% of reading ± 1A) |
| AC Current Max Resolution | 0.1A |
| AC Voltage | 10 to 600V |
| AC Voltage Basic Accuracy | ±(1.5% of reading ±1V) |
| AC Voltage Max Resolution | 0.1V |
| Memory | 100,000 points |
| PC Interface | USB |
| Sampling Rate | 1 second to 24 hours |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 4.5 × 2.5 × 1.3" (114 × 63 × 34mm) |
| Power | 4 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 8.7oz (248g) |
