3D Stereo Image Microscope (Zoom)

Details
Category: Trinocular Metallurgical / Tool Microscope

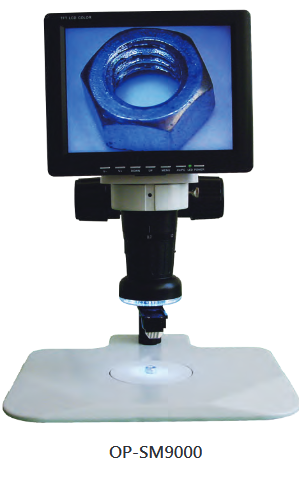

3D Stereo Image Microscope (Zoom)

  • Total magnification: 3.3X-147X, Zoom body with detents: 0.7X-4.5X, Ratio: 1:6.5, stereo optic observation unit: 35° view angle attachment with 0.75X objective lens, internal LED ring light and laser position indicator. Optional objective lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X.

  • Resolution: 800*600, max: 1024*768, contrast: 300:1, visible angle: 150°, reaction time: ≦25ms, brightness: 250cd/m² with BNC/S-video output

  • Φ90 non-illumination track slide base, track slide column height: 330mm, fine adjustable focus: 200mm.
