- Details
- Category: Environmental Monitoring

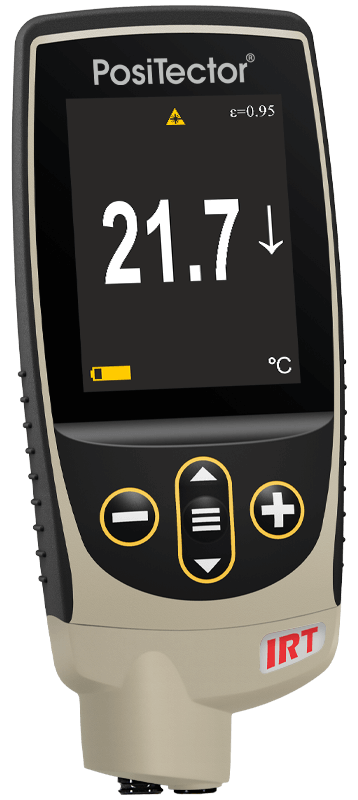

Non-contact surface temperature measurement
| Range | Accuracy | Resolution | |
|---|---|---|---|
| Temperature Range | -70° to 380° C | ±1° C + 1%* | 0.1° C |
| -94° to 716° F | ±1.8° F + 1%* | 0.1° F |
* At 23° C (73.4° F) ambient
| Laser Pointer | Class 2 < 1mW |
|---|---|
| Distance to Spot Ratio (D:S) | 5.7:1 < 1mW |
| Emissivity | Adjustable |
| Response Time | < 500 μs (95% response) |
| Spectral Response | 2 – 14 μm |
- Details
- Category: Environmental Monitoring
Climate conditions are measured and recorded, such as relative humidity, air temperature, surface temperature, dew point temperature, wind speed, and the difference between surface and dew point temperatures.
Ideal for surface preparation as required by ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7, and US Navy NSI 009-32.
| Range | Accuracy | Resolution | |
|---|---|---|---|
| Surface Temperature | ± 0.5° C | ± 1.5° C | 0.1° C |
| 80° to 190° C | ± 1.5° C | ||
| -40° to 175° F | ± 1° F | 0.1° F | |
| 175° to 375° F | ± 3° F | ||
| Infrared Surface Temperature* | -70° to 380° C | ± 1° C + 1%** | 0.1° C |
| -94° to 716° F | ± 1.8° F + 1%** | 0.1° F | |
| Air Temperature | -40° to 80° C | ± 0.5° C | 0.1° C |
| -40° to 175° F | ± 1° F | 0.1° F | |
| Humidity | 0 to 100% | ± 3% | 0.1% |
| Wind Speed† | 0 to 20 m/s | ± 3% Full Scale | 0.1 m/s |
| 0 to 44 mph | ± 3% Full Scale | 0.1 mph | |
| Dew Point | -60° to 80° C | ± 3° C‡ | 0.1° C |
| -76° to 175° F | ± 5.4° F‡ | 0.1° F |
* * DPM IR models only
** At 23° C (73° F) ambient
† DPM A models only
‡ dependent on RH. See Dew Point (Td) Accuracy for more information.
- Details
- Category: Environmental Monitoring
Magnetic probes attach to steel buildings to detect weather conditions.
| Range | Accuracy | Resolution | |
|---|---|---|---|
| Surface Temperature | -10° to 0° C | ± 1.5° C | 0.1° C |
| >0° to 80° C | ± 0.5° C | 0.1° C | |
| >80° to 100° C | ± 1.5° C | 0.1° C | |
| 14° to 32° F | ± 2.7° F | 0.1° F | |
| >32° to 176° F | ± 0.9° F | 0.1° F | |
| >176° to 212° F | ± 2.7° F | 0.1° F | |
| Air Temperature | -10° to 60° C | ± 0.5° C | 0.1° C |
| 14° to 140° F | ± 1° F | 0.1° F | |
| Humidity | 0 to 100% | ± 3% | 0.1% |
| Dew Point | -60° to 60° C | ± 3° C* | 0.1° C |
| -76° to 140° F | ± 5.4° F* | 0.1° F |
* Dependent on RH. See Dew Point (Td) Accuracy for more information.
- Details
- Category: Environmental Monitoring
Climate conditions are measured and recorded, such as relative humidity, air temperature, surface temperature, dew point temperature, wind speed, and the difference between surface and dew point temperatures.
Ideal for surface preparation as required by ISO 8502-4, BS 7079-B4, ASTM D3276, IMO PSPC, SSPC-PA7, and US Navy NSI 009-32.
| Range | Accuracy | Resolution | |
|---|---|---|---|
| Surface Temperature | -40° to 80° C | ± 0.5° C | 0.1° C |
| 80° to 190° C | ± 1.5° C | ||
| -40° to 175° F | ± 1° F | 0.1° F | |
| 175° to 375° F | ± 3° F | ||
| Infrared Surface Temperature* | -70° to 380° C | ± 1° C + 1%** | 0.1° C |
| -94° to 716° F | ± 1.8° F + 1%** | 0.1° F | |
| Air Temperature | -40° to 80° C | ± 0.5° C | 0.1° C |
| -40° to 175° F | ± 1° F | 0.1° F | |
| Humidity | -0 to 100% | ± 3% | 0.1% |
| Wind Speed† | 0 to 20 m/s | ± 3% Full Scale | 0.1 m/s |
| 0 to 44 mph | ± 3% Full Scale | 0.1 mph | |
| Dew Point | -60° to 80° C | ± 3° C‡ | 0.1° C |
| -76° to 175° F | ± 5.4° F‡ | 0.1° F |
* DPM IR models only
DPM IR models only
** At 23° C (73° F) ambient
† DPM A models only
DPM A models only ‡ dependent on RH. See Dew Point (Td) Accuracy for more information.
 |
