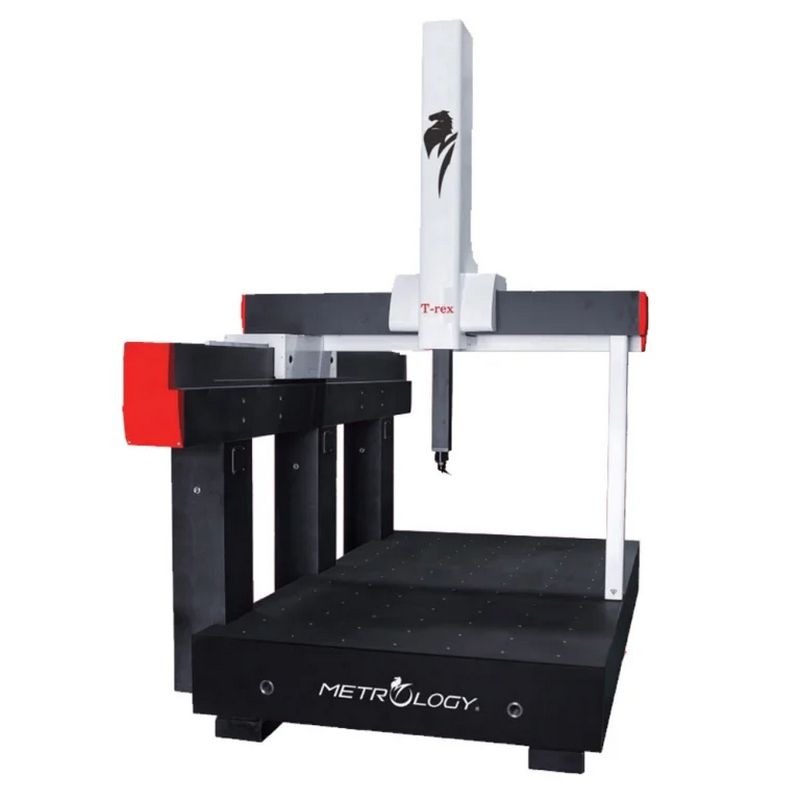

Bridge type measuring machine is inherited from German M&S Group craftsmanship. X-axis precision triangular or rectangular beam structure design, an adoption of advance FEM (finite element method) makes it strong in rigidity, which guarantee from deforming and warping to ensure its linear accuracy.
3-axis adoption of England Renishaw 0.1um high precision metrology system, measuring accuracy: from MPEE：1.2+2L/1000(um) The measuring accuracy is at a par or better than other more costly brands from America, Europe, and Japan. tools.
Our machine is made with a combination of key components from USA, Germany, England, and Japan. The seamless integration out-performs comparable brands in the same class.
World- leading England Renishaw UCC control system includes dual computing system, integrated electrical control box, joystick controller which improves the system’s reliability, interference resistant and avoid crushing.
New 3D graphical display measuring software It is the latest international standard CMM measurement software certified by German PTB
| MODEL NO. | CMM-T152012CNC | CMM-T152512CNC | CMM-T153012CNC |
|---|---|---|---|
| Measuring Range (X×Y×Z) | 1500×2000×1200mm | 1500×2500×1200mm | 1500×3000×1200mm |
| Resolution | 0.0001mm / 0.00001" Renishaw reflecting metal tape scale | ||
| Measuring Accuracy | MPE: 2.4+L/350 (μm) | MPE: 2.4+L/350 (μm) | MPE: 2.4+L/350 (μm) |
| Repeatability | MPE: 3.5μm | MPE: 3.5μm | MPE: 3.5μm |
| Main Structure | 3-Axis DIN00 grade granite Bridge type measuring machine | ||
| Motion System | 3-Axis with USA AMETEK & JAPAN SANYO high performance DC motor drive | USA EATON synchronous belt system | |
| Drive Speed | Uniaxial Max: 520mm/s | Acceleration Max: 1350mm/s² | |
| Pressure System | 3-Axis with FESTO pressure control configuration | Japan SMC self-clean air floating and filter system | |
| Measuring System | 3-Axis Renishaw high accuracy reflecting metal tape measuring scale system | ||
| Probe System | 1. Renishaw RTP20 -360° rotating and 15° indexing electronic half auto trigger probe | ||
| 2. Renishaw PH20MT -360° rotating and unlimited indexing electronic auto trigger probe | |||
| 3. Renishaw PH10T -360° rotating and 7.5° indexing electronic auto trigger probe | |||
| 4. Renishaw PH20 -5 axis measurement: 360° rotating and unlimited indexing electronic auto trigger probe | |||
| 5. Renishaw PH10M-SP25 -360° rotating and 7.5° indexing electronic auto scanning probe | |||
| 6. Renishaw REVO -5 axis multi-sensor scanning measurement and probe system | |||
| 7. Standard Accessories: 50mm kit / Extension rod / Ø25mm origin standard ball | |||
| Control System | Renishaw UCC control system | ||
| Measuring Software | RATIONAL DMIS CAD / New auto 3D graphical display measuring software | ||
| Computer Hardware | 2.5G Dual-Core Computer / Win 10 / 22" LED monitor | ||
| Dimension of Machine (L×W×H) | 2500×3300×3900mm | 2500×3800×3900mm | 2500×4300×3900mm |
| Machine Weight | 8000kg | 9000kg | 10000kg |
| Maximum Loading | 2400kg | 2800kg | 2800kg |
| Air Supply | 0.6 - 0.8Mpa | ||
| Power Requirement | 100V-240VAC ±10% / 50-60Hz | ||
| Environment Requirement | Storage temperature 15°C ~ 32°C / Humidity <70%RH | ||
| Optional Accessory | The best temperature of measuring 18°C ~ 22°C / Humidity 45%~85%RH | ||
| Fixture / 50mm kit / Replacement rack / Sensor module / Image measuring system / Other special software or accessory | |||
