5 -axis multi-sensor scanning system
690% improvement in throughput
Valve seat and guide measurement is one of the toughest
measurement tasks in an automo�ve cylinder block.
Using a helical scan, the REVO® head gathers thousands of
data points from which the height, diameter, seat width and
form can be determined.

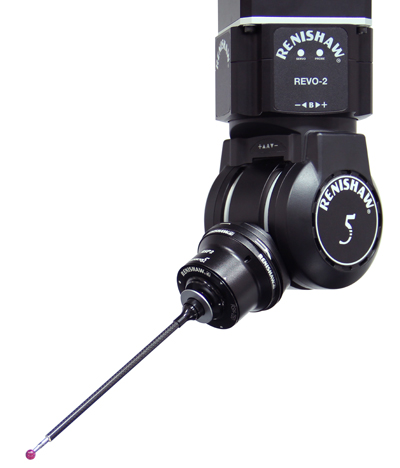

REVO™ features and benefits:
Incorporates Renscan5™ five axis scanning
technology minimising CMM motion and the
associated CMM dynamic errors
Increased measuring speed, up to 500 mm/sec
resulting in increased measurement throughput
Data collection rates up to 6,000 points per
second
Infinite positioning and five axis motion reduces
nonproductive transitions between features
Stylus wear minimised by extremely low
scanning forces
Infinite positioning and five axis motion aid
access to difficult features
Rapid calibration with all positions inferred
means more time measuring
Maximum reach up to 500 mm with maintained
effective working length
Standard M2 styli for convenience
Probe and stylus changing capability allowing
flexibility and future probing technology
compatibility
