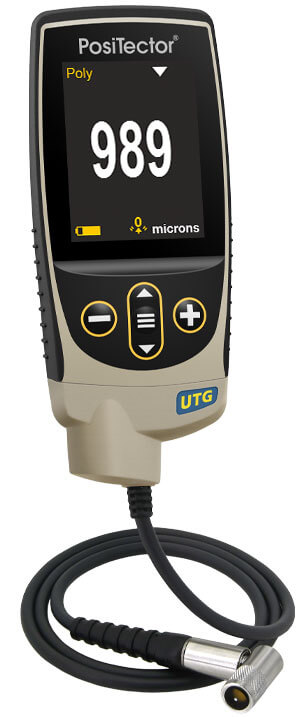

PosiTector UTG P

Precision ultrasonic thickness meters are intended for high-resolution measurements on thin materials such as metals and polymers. Automatic Multi-Echo mode gives the highest accuracy on thin metals.

15 MHz Single element delay line with cabled probe

Automatic single-echo or multiple-echo mode depending on material thickness

Automatic probe tip temperature compensation

Ideal for thru-paint applications to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating

Precision probe ideal for thin materials

• Minimum steel measuring range: 0.008" (0.2 mm)
• Minimum plastic measuring range: 0.005" (0.125 mm)

Probe Model UTG P
Probe Type:	15 MHz Single Element Delay Line
Thru-Paint Capability:	Yes
*Measurement Range - Steel	0.008" to 0.475" 0.2 mm to 12.0 mm
*Measurement Range - Plastic	0.005" to 0.165" 0.125 mm to 4.500 mm
Resolution:	0.001” 0.01 mm
*Accuracy:	±0.0004” ±0.01 mm

*Measurement range is for carbon steel and depends upon surface condition, temperature, and material.
