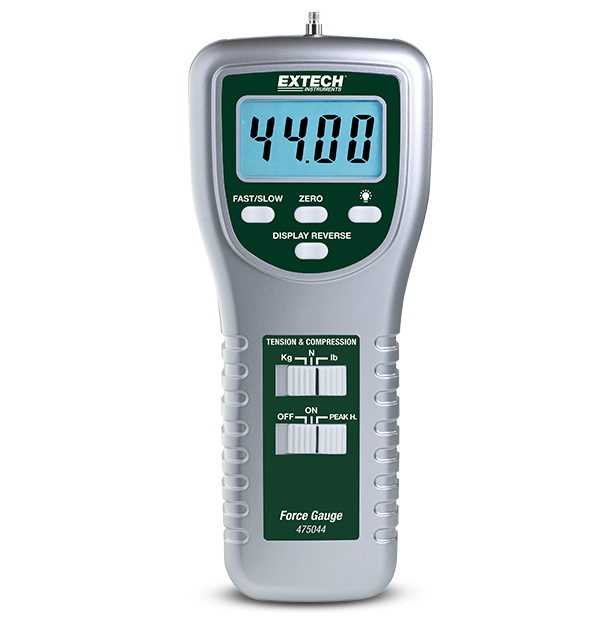

The 475044 High Capacity Force Gauge features a 5-digit LCD display with peak hold. Exclusive load cell measuring transducer. Overrange, low battery, and advanced function indicators. The measurement capacity is 20kg/44.1 pounds/196.1 Newtons. Response times can be selected as fast or slow. Basic accuracy is 0.5%. The display reverses to match the viewing angle. Complete with tension rod, carrying case, four adapters (flathead, cone, chisel, and tension hook), and six AA batteries.
| Force | 44lbs, 20kg, 196 Newtons |
|---|---|
| Force Basic Accuracy | ±(0.5%) |
| Force Max Resolution | 0.01lbs, 0.01kg, 0.05 Newtons |
| Full Scale Detection | 2.00mm |
| Overload Capacity | 30kg |
| Transducer Type | Load cell |
| Update Rate | Fast mode 0.2secs; Slow mode 0.6secs |
| Certifications | CE |
| Dimensions | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
| Power | 6 × AA (1.5V ) batteries |
| Warranty | 2 years |
| Weight | 1.4 lbs (650g) |
