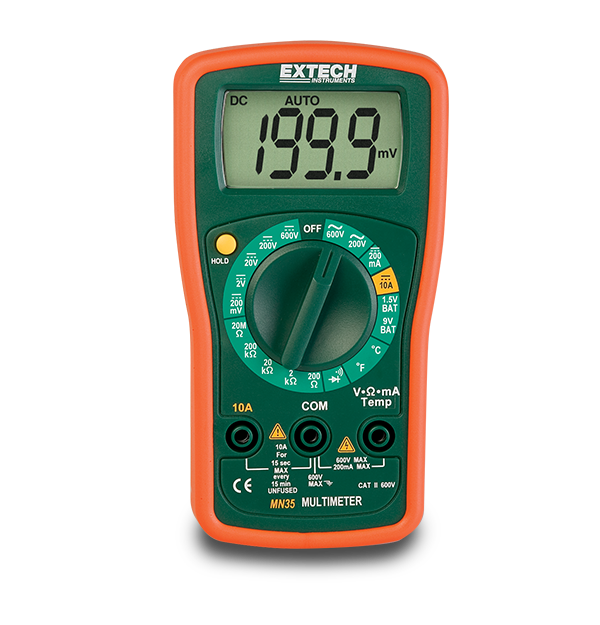

The MN35 is a handy small multimeter with a protective rubber pouch and a tilt stand. Manual range, measures AC and DC voltage up to 600V, resistance with continuity and diode features, DC current up to 10A, temperature, and 9V/1.5V battery testing. The kit includes a protective rubber holster, a 9V battery, test leads, and a Type K thermocouple probe.
| AC Voltage | 600V |
|---|---|
| AC Voltage Basic Accuracy | ±1.2% |
| AC Voltage Max Resolution | 0.1V |
| Battery Test | 9V and 1.5V |
| DC Current | 10A |
| DC Current Basic Accuracy | ±1.5% |
| DC Current Max Resolution | 0.1mA |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±0.5% |
| DC Voltage Max Resolution | 0.1mV |
| Resistance | 20MΩ |
| Resistance Max Resolution | 0.1µΩ |
| Temperature (Type K) Max Resolution | -4 to 1400°F (-20 to 750°C) |
| Temperature (Type N) | ±(1% of reading + 4°) |
| Temperature (Type N) Basic Accuracy | 1°F/°C |
| Certifications | CE |
| Dimensions | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Power | 1 × 9V battery |
| Safety Category | CATII - 600V |
| Warranty | 2 years |
| Weight | 5.4oz (153g) |
