For measuring coaxial, concentricity, roundness and roundout of cylindrical workpieces
| Model No. | Specification (L*W*H mm) | Accuracy (mm) | Weight (kg) |
|---|---|---|---|
| GN-60V | 60×60×60 | 0.0015 | 1.2 |

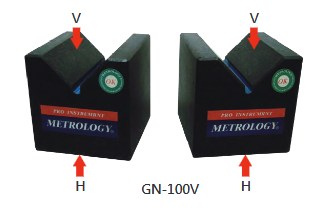

| GN-100V | 100×100×80 | 0.0020 | 4 |
| GN-160V | 160×160×100 | 0.0025 | 14 |
| GN-200V | 200×200×120 | 0.0030 | 28 |
| GN-300V | 300×300×150 | 0.0045 | 80 |
*Standard: 2pcs/set, Normal product is with precision machining of flatness on both sides of bottom & V-shaped surfaces.
*Providing requirement for specific type, specification, and accuracy of granite structure.
*Optional: Wooden with leather box packaging.
