Pinhole & Holiday Detection Instruments

Details: Category: Pinhole & Holiday Detection Instruments

PosiTest HHD C Continuous High voltage Holiday Detector — Continuous High voltage Holiday Detector

The PosiTest HHD C High Voltage Holiday Detector use continuous DC technology to detect holidays, pinholes, and other discontinuities on metal and concrete substrates. The voltage range is modifiable by the user, from 0.5 to 30 kV.

Available as a stick-type with pulsed DC or a compact wand style with continuous DC

Lightweight, ergonomic design provides comfortable all-day use, reducing operator fatigue

Regulated pulse or continuous DC voltage output that won't change under load— ±5% voltage accuracy

Voltage calculator feature—input the coating thickness to automatically calculate the required test voltage

Extensive electrode options—choose from a wide range of rolling spring and flat wire brush electrodes or use electrodes from other manufacturers with optional adaptors—custom sizes available upon request

Long Form Certificate of Calibration included with each instrument

Conforms to ASTM D4787/D5162/D6747/D7953/G62, ISO 29601, NACE SP0188/SP0274/SP0490, AS3894.1

Specifications	PosiTest HHD Kit	PosiTest HHD Basic Kit	PosiTest HHD C Kit
DC Output	Pulsed	Pulsed	Continuous
Output Voltage Range	0.5 – 35 kV	0.5 – 35 kV	0.5 – 30 kV
Output Voltage Adjustment	0.5 kV – 1 kV: 10 Volt Steps > 1 kV: 100 Volt Steps	0.5 kV – 1 kV: 10 Volt Steps > 1 kV: 100 Volt Steps	--
Output Accuracy	±5%	±5%	--
Pulse Duration	10 µs	10 µs	--
Pulse Repetition Rate	30 Hz	30 Hz	--
Operating Temperature	-20° to 60°C (-4° to 140°F)
Case	Pelican Storm extreme duty waterproof case	Heavy duty hard-shell case	Heavy duty hard-shell case
Included Electrode Rod	50 cm (20")	13 cm (5")	--
Shoulder Strap	Included	Optional	--
Battery Size	72 Wh Li-ion	36 Wh Li-ion	4 Li-ion 18650 Batteries
Typical Battery Life	Ø 12": 40 hrs.	Ø 12": 16 hrs.	--
Typical Battery Life	Ø 40": 30 hrs.	Ø 40": 12 hrs.	--
Unit Weight	1.6 kg (3.6 lbs.)	1.5 kg (3.3 lbs.)	0.74 kg (1.63 lbs.)
Unit Dimensions	64 cm × 6.4 cm × 13 cm (25" × 2.5" × 5")	--	33 cm × 10.8 cm × 8 cm (13" × 4.25" × 3.1")
Case Dimensions	101 × 46 × 18 cm (40" × 18" × 7")	104 × 39 × 14 cm (41" × 15.5" × 6")	46 × 33 × 18 cm (18" × 13" × 7")

Details: Category: Pinhole & Holiday Detection Instruments

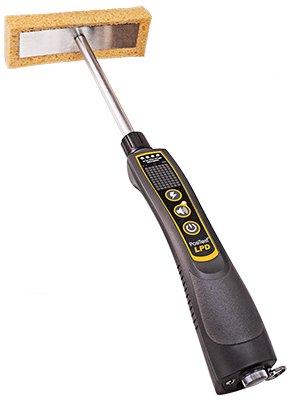

PosiTest® LPD Low voltage Pinhole Detector for Metal and Concrete Substrates — Low voltage Pinhole Detector for Metal and Concrete Substrates

Detects holidays, pinholes, and other flaws in coatings on metal and concrete surfaces.

GroundSense visibly reassures the user that the instrument is properly grounded

4 voltage output options conform to a variety of standards

Weatherproof, dustproof and shockproof—meets or exceeds IP65

Rugged, environmentally sealed enclosure

Two year warranty

Certificate of Calibration showing traceability to NIST included (Long Form)

Conforms to ISO 14654/29601/8289-A, ASTM G62/G6/D5162, BS7793-2, NACE TM0384, SP0188, AS3894.2, JIS K 6766

Voltage Setting	9V ± 5%	67.5V ± 5%	67.5V ± 5%	90V ± 5%
Sensitivity	90k ± 3%	80k ± 3%	90k ± 3%	400k ± 3%
Thickness Range	0 – 500 µm (0 – 20 mils)
Temperature Range	-10 – 50° C (14 – 122° F)
Battery Life	> 150 hrs (depending on battery type)
IP Rating	meets or exceeds IP65
Size	27 × 6 × 5.5 cm (10.6" × 2.3" × 2.1") without wand
Weight	180 g (6.4 oz.) without batteries

Details: Category: Pinhole & Holiday Detection Instruments

PosiTest® HHD Series High voltage Holiday Detectors — High voltage Holiday Detectors

Detects holidays, porosity, pinholes, leaks, and other discontinuities in coatings, linings, and membranes with pulse or continuous DC.

GroundSense visibly reassures the user that the instrument is properly grounded

Weatherproof, dustproof and shockproof—meets or exceeds IP65

Rugged, environmentally sealed enclosure

Two year warranty

Certificate of Calibration showing traceability to NIST included (Long Form)

Conforms to ISO 14654/29601/8289-A, ASTM G62/G6/D5162, BS7793-2, NACE TM0384, SP0188, AS3894.2, JIS K 6766

Specifications	PosiTest HHD Kit	PosiTest HHD Basic Kit	PosiTest HHD C Kit
DC Output	Pulsed	Pulsed	Continuous
Output Voltage Range	0.5 – 35 kV	0.5 – 35 kV	0.5 – 30 kV
Output Voltage Adjustment	0.5 kV – 1 kV: 10 Volt Steps > 1 kV: 100 Volt Steps	0.5 kV – 1 kV: 10 Volt Steps > 1 kV: 100 Volt Steps	--
Output Accuracy	±5%	±5%	--
Pulse Duration	10 µs	10 µs	--
Pulse Repetition Rate	30 Hz	30 Hz	--
Operating Temperature	-20° to 60°C (-4° to 140°F)
Case	Pelican Storm extreme duty waterproof case	Heavy duty hard-shell case	Heavy duty hard-shell case
Included Electrode Rod	50 cm (20")	13 cm (5")	--
Shoulder Strap	Included	Optional	--
Battery Size	72 Wh Li-ion	36 Wh Li-ion	4 Li-ion 18650 Batteries
Typical Battery Life	Ø 12": 40 hrs.	Ø 12": 16 hrs.	--
for selected rolling springs @ 10 kV	Ø 40": 30 hrs.	Ø 40": 12 hrs.	--
Unit Weight	1.6 kg (3.6 lbs.)	1.5 kg (3.3 lbs.)	0.74 kg (1.63 lbs.)
Unit Dimensions	64 cm × 6.4 cm × 13 cm (25" × 2.5" × 5")	--	33 cm × 10.8 cm × 8 cm (13" × 4.25" × 3.1")
Case Dimensions	101 × 46 × 18 cm (40" × 18" × 7")	104 × 39 × 14 cm (41" × 15.5" × 6")	46 × 33 × 18 cm (18" × 13" × 7")

Details: Category: Pinhole & Holiday Detection Instruments

Detects holidays, pinholes, and other flaws in coatings on metal and concrete surfaces.

GroundSense visibly reassures the user that the instrument is properly grounded

Weatherproof, dustproof and shockproof—meets or exceeds IP65

Rugged, environmentally sealed enclosure

Two year warranty

Certificate of Calibration showing traceability to NIST included (Long Form)

Conforms to ISO 14654/29601/8289-A, ASTM G62/G6/D5162, BS7793-2, NACE TM0384, SP0188, AS3894.2, JIS K 6766

Voltage Setting	9V ± 5%	67.5V ± 5%	67.5V ± 5%	90V ± 5%
Sensitivity	90k ± 3%	80k ± 3%	90k ± 3%	400k ± 3%
Thickness Range	0 – 500 μm (0 – 20 mils)
Temperature Range	-10 – 50° C (14 – 122° F)
Battery Life	> 150 hrs (depending on battery type)
IP Rating	meets or exceeds IP65
Size	27 x 6 x 5.5 cm (10.6" x 2.3" x 2.1") without wand
Weight	180 g (6.4 oz.) without batteries
