512 Hz sondes, sometimes known as "moles" or "beacons", are compatible with any Schonstedt pipe and cable finder. Sondes benefit a wide range of industry applications. When combined with video inspection equipment, they can help identify blockages or pipeline faults in water and sewer systems. You may trace a path and calculate the depth of a nonmetal pipe like HDPE, PVC, transcite, or clay tile. In cable applications, they can be used to trace empty fiber-duct or nearby conduit runs and terminate at unmarked subterranean vaults or splice boxes. The deep precision of a sonde's position can help to save excavation expenses and time. A self-contained battery-powered sonde can detect depths of up to 15 feet, depending on the frequency.
| Frequency | 512 Hz |
|---|---|
| Size (inches) | 1.53" dia x 4.13" |
| Battery | 1 - AA |
| Battery Life | 6-8 hours continuous use @ 70°F (21°C) |
| Adapters | M10 (10mm) Thread |
| Depth Range | 14 - 16 Ft max soil type dependent |
- Details
- Category: KITS & OTHER

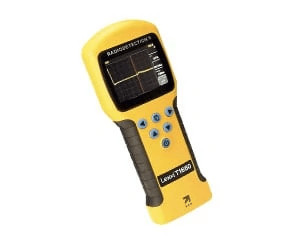

The Lexxi T1660™ provides unsurpassed performance, usability, and economy. Combining hand-held ergonomics with a TDR engine, this fault locator provides technicians with the tools they need to locate defects fast, with 1% distance accuracy and resolution.
| Ranges: | Meters: 7, 15, 30, 60, 120, 250, 500, 1000, 2000, 3000, 6000 Feed: 20, 50, 100, 200, 400, 800, 1600, 3200, 9400, 10000, 20000 |
|---|---|
| Range Selection: | Manual range control |
| Accuracy: | 1% of selected range* |
| Display | 328x256 pixel 3.5” color backlit LCD |
| Resolution | Approx 1% of range |
| Velocity Factor, VoP: | Adjustable from 1% to 99% |
| Output Pulse: | 5V peak to peak - Into open circuit |
| Output Impedance:: | Selectable 25, 50, 75 & 100 ohms |
| Output Pulse Width: | 3ns to 3ms - Automatic with range |
| Scan Rate: | 2 scans/second |
| Batteries: | Six AA (LR6/R6) Alkaline or NiMH cells |
| Battery Life: | 12 hours typical, continuous operation - Alkaline batteries |
| Voltage Protection: | 600VAC Category III, 300VAC Category IV, 250VAC. Lexxi T1660 with Mains Blocking Filter Lexxi T1660 with all other connectors and Plug-In Module options |
| Power Down: | Selectable 1, 3, 5, 10, 15 minutes or disabled |
| Operating Temp: | -10. to 50.C, 14. to 122.F |
| Storage Temp: | -20. to 70.C, -4. to 158.F |
| Dimensions: | 250x100x55mm, 9.8x4x2.2” |
| Weight | 600g, 1.3lb |
| Standards: | EMC BS/EN 61326-1 |
| Water/Dust Proof: | IP54 |
- Details
- Category: KITS & OTHER

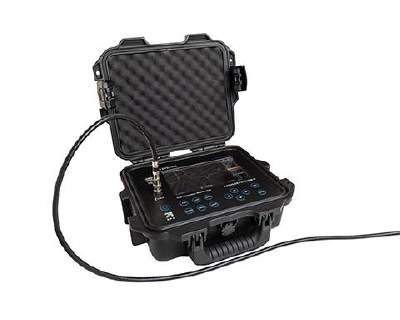

Radiodetection's 1205CXB™ Metallic Cable Analyzer TDR simplifies the process of identifying cable defects and ensuring customer network connectivity.
The ultra-clean, low noise signal, combined with the huge color display and the fact that all TDR adjustments are on-screen and at your fingertips, make this one of the easiest instruments to operate in the business.
| Distance Accuracy: | ± 0.1 ft (0.03 m) plus ± .01% of reading Accuracy will vary with cable VOP and cable type |
|---|---|
| Horizontal Resolution: | Up to 2,000 ft (610 m): <0.05 ft (.03 m) at .990 VOP; <0.02 ft (.01 m) at .300 VOP Over 2,000 ft (610 m): 1 ft. (.1 m) at any VOP |
| Maximum Ranges: | 63,700 feet (19,400 meters) at 99.0% VOP; 51,500 feet (15,500 meters) at 80.0% VOP Range varies with VOP Maximum testable cable length varies with pulse width and cable type |
| Physical Dimensions: | Width: 10.5 inches (267 mm) Height: 9.75 inches (247.6 mm) Depth: 5 inches (127 mm) Weight: 6 pounds (2.7 kg) |
 |
