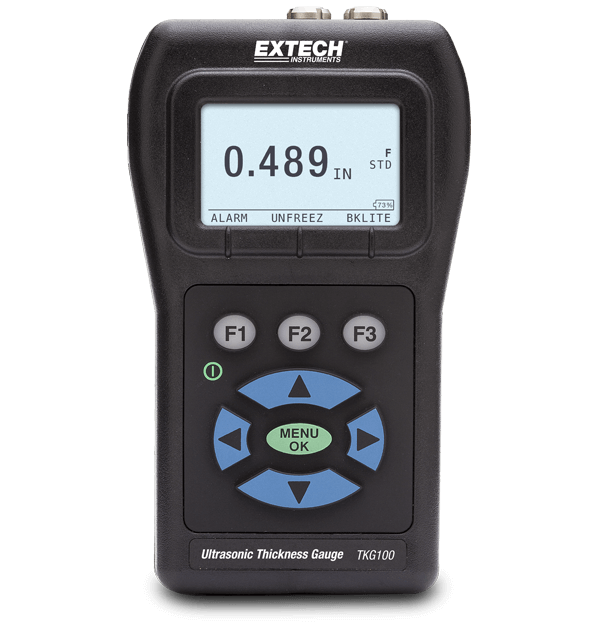

The Extech TKG100 Thickness Gauges are designed in a compact, portable, durable chassis that is suited for use in the field. Ultrasonic technique enables non-destructive thickness measurements for mostly steel structures. It has several transducer options for high-temperature and difficult-to-measure materials. Comes with a 2 oz container of coolant, two AA batteries, a 5 MHz transducer, and a sturdy carrying bag.
| Material Velocity Calibration | 0.200 to 0.7362 in/µS (0.508 to 18.699mm/µS) |
|---|---|
| Steel Thickness | 5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm) |
| Certifications | CE |
| IP Rating | IP54 |
| Power | 2 × AA (1.5V) batteries |
| Warranty | 2 years |
