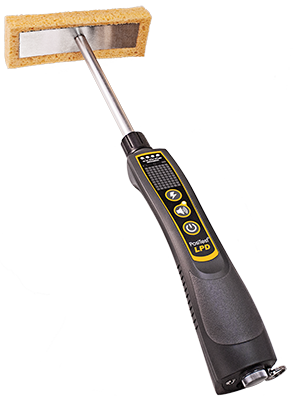

PosiTest® LPD

Detects holidays, pinholes, and other flaws in coatings on metal and concrete surfaces.

GroundSense visibly reassures the user that the instrument is properly grounded

4 voltage output options conform to a variety of standards

Weatherproof, dustproof and shockproof—meets or exceeds IP65

Rugged, environmentally sealed enclosure

Two year warranty

Certificate of Calibration showing traceability to NIST included (Long Form)

Conforms to ISO 14654/29601/8289-A, ASTM G62/G6/D5162, BS7793-2, NACE TM0384, SP0188, AS3894.2, JIS K 6766

Voltage Setting	9V ± 5%	67.5V ± 5%	67.5V ± 5%	90V ± 5%
Sensitivity	90k ± 3%	80k ± 3%	90k ± 3%	400k ± 3%
Thickness Range	0 – 500 µm (0 – 20 mils)
Temperature Range	-10 – 50° C (14 – 122° F)
Battery Life	> 150 hrs (depending on battery type)
IP Rating	meets or exceeds IP65
Size	27 × 6 × 5.5 cm (10.6" × 2.3" × 2.1") without wand
Weight	180 g (6.4 oz.) without batteries
