- Details

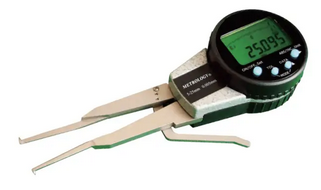

- Category: Digital Inside Caliper Gauge
For measuring width, inside diameter, inside groove diameter.
| Model No. | Measuring Range | Accuracy | Dimension (mm) |
|---|---|---|---|
| IC-9005E | 5-25mm | ±30um | A: 1 B: 1.5 L: 35 R: 0.3 |
| IC-9010E | 10-30mm | A: 2 B: 3.5 L: 50 R: 0.5 | |
| IC-9020E | 20-40mm | A: 3 B: 6.5 L: 80 R: 0.5 | |
| IC-9030E | 30-50mm | A: 3 B: 8.5 L: 80 R: 0.5 | |
| IC-9040E | 40-60mm | A: 3 B: 8.5 L: 80 R: 0.5 |
Resolution: 0.005mm / 0.0002
 |
