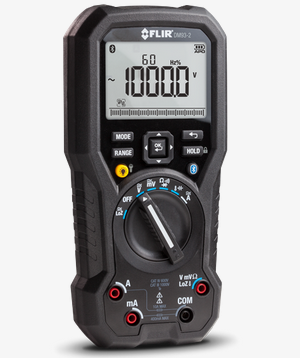

The FLIR DM93-2 is a high-performance digital multimeter with superior variable-frequency drive (VFD) filtering that allows you to accurately analyze non-traditional sine waves and noisy signals encountered in VFD-controlled equipment. Whatever electrical problem you face, the DM93-2's bright lighting and resilient design are up to the task. The METERLiNK® app allows you to quickly and easily collect readings, photos, and videos for analysis, trending, and sharing.
| Display Counts | 40,000 |
|---|---|
| AC Current | 10.000 A ± 1.0% |
| AC Voltage | 1000.0 V ± 0.5% |
| Capacitance | 40.00 mF ± 0.9% |
| Category Rating | CAT IV-600 V, CAT III-1000 V |
| Continuity Threshold | 30 Ω ± 0.2% |
| DC Current | 10.000 A ± 0.2% |
| DC Voltage | 1000.0 V ± 0.05% |
| Diode Test | 2 V ± 1.5% |
| Display Counts | 40,000 |
| Frequency | 100.00 kHz ± 5 digits |
| Measuring Rate | 10 samples per second |
| Resistance | 40.00 MΩ ± 0.2% |
| Temperature Range | -200°C to 1200°C (-328°F to 2192°F) ±1.0% |
| Temperature Type K thermocouple | Yes |
| VFD AC Voltage | 1000.0 V ± 0.5% |
| Bluetooth range max | 10 m (32 ft) |
| Data Recording | 10,000 records with METERLiNK |
| Memory | 99 internal storage locations |
| Auto Power Off | Default: 10 minutes |
| Battery life | ~100 hours with alkaline batteries (backlight, worklight, and Bluetooth off) |
| Battery type | 6 × 1.5 V AAA alkaline batteries |
| Packaging Size | 28.5 cm × 15 cm × 10.4 cm (11.22 in × 5.91 in × 4.09 in) |
| Size (L x W x H) | 207.1 mm × 98.1 mm × 60.7 mm (8.15 in × 3.86 in × 2.39 in) |
| Weight | 601 g (1.33 lb) including batteries |
| Worklights | Yes |
| Certifications | UL, CE, FCC, UKCA |
| Drop test | 3 m (9.8 ft) |
| IP Rating | IP54 dust-protected and splash-resistant |
| Warranty | https://www.flir.com/testwarranty |
| Accessories In the Box | Premium test leads Type K temperature probe (204°C, 400°F) Warranty card 6 × AAA Energizer batteries Quick Start Guide |
