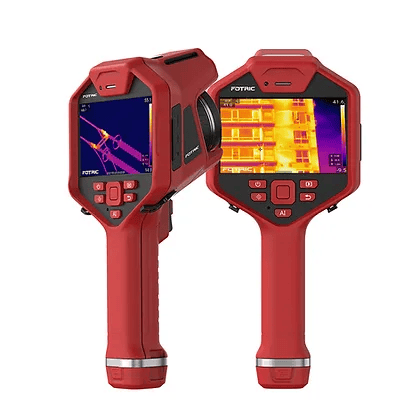

| Model | 348A |
|---|---|
| Infrared Resolution | 640*480 |
| Thermal Sensitivity（NETD) | ＜0.03℃@30℃ |
| Temperature Measurement Range | -20℃ to 120℃ (-4℉ to 248℉);0℃ to 650℃(32℉ to 1202℉);300℃ to 1550℃(572℉ to 2822℉);smart switch between |
| User-definable Markers | 16 spot markers; 12 (rectangle or circle); 8 measurement lines |
| Focus Mode | TurboFocus™Speedy Intelligent Autofocus system for continuous, laser distance, graphic contrast,manual |
| Field of View（FOV）- Standard Lens | 25°×19° |
| Interchangable Lens Options | Wide-angle:44°×34°(<0.1m), IFOV:1.2mrad Telephoto:12°×9°(<1.0m), IFOV:0.33mrad Ultra Telephoto:7°×5°(<3.0m),IFOV:0.19mrad |
| AI Programmable Key | Yes, for quick start |
| Frame Rate | 30Hz |
| Lens Options | Optional wide-angle lens, telephoto lens and ultra telephoto lens |
| Storage Memory | 128GB SD memory card |
| Accuracy | ± 1℃ or ± 1 %, whichever is greater at below 200°C， ± 2℃ or ± 2 % above（ambient temp between15℃ ~35℃ ) ± 2℃ or ± 2 %, whichever is greater（ambient temp between15℃ ~35℃ ) |
| Sound Alarms | Area alarm; High temperature alarm and low temperature alarm. |
| Display | Gorilla Glass Explosion-proof IPS LCD Display pixels: 1280*720， Display size: 5inch (landscape) |
| Build-in Digital Camera (visible light) | 13-megapixel, industrial digital camera |
| Palettes | 15 standard palettes, 3 color isotherm, 15 inverted palettes |
| Image File Formats | Standard JPEG with measurement data included |
| Video File Formats | Full radiation thermal image video in IRS format; standard MPEG4 non radiation video; |
| Remote Control Operations | Remote display and control operation through Fotric AnalyzIR software |
| Battery Life | Over 4 hours per battery |
| Battery Charging System | Two-bay battery charger with LED display (12V, 3A) |
| Device Interface | Support USB Type-C 3.0, Micro HDMI and SD card |
| Vibration | EN 60068-2-6 |
| Drop | Engineered to withstand 2 meters (6.5 feet) drop with standard lens |
| Enclosure Rating | IP54 (protected against dust, limited ingress; protection against water spray from all directions), GB/T 4208-2017/IEC60529:2013 |
| Shock | EN 60068-2-27 |
| Electromagnetic Compatibility | EN 61326-1:2013 ( EN 61000-6-2),EN 61326-1:2013 Class A ( EN 61000-6-3),FCC 47 CFR Part15 Class A (emission) |
