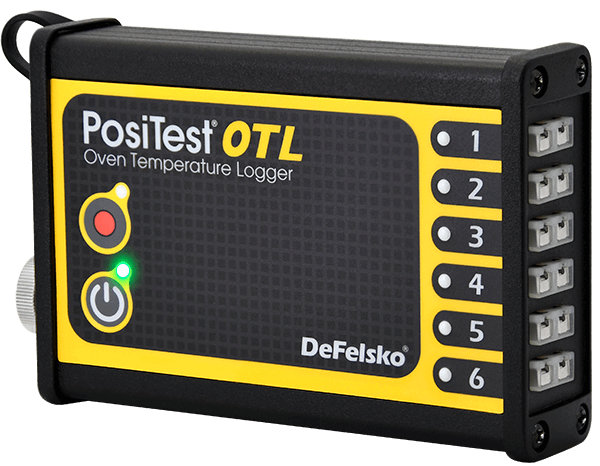

Measures and records oven temperature profiles.
Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches
High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
6 K-type thermocouple ports (channels)
NEW Cure Index compares supplier's cure specifications to actual oven and part temperatures to ensure a proper cure
Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.
Wide variety of probes available with 1.8, 3.6, or 6 m (6', 12', or 20') stainless steel braided cables (sold separately)
| Channels |
6 K-type non-grounded thermocouples |
| Thermocouple Measurement Range |
-100 to 1000°C
-148 to 1832°F |
| Logger Accuracy |
±0.5°C
±0.9°F |
| Resolution |
0.1°C
0.1°F |
| Memory |
40,000 Datasets. Each Dataset consists of up to 6 channels. |
| Sample Interval |
2 seconds (Fixed)
Maximum recording time is 22 hours |
| Power Source |
2 AAA batteries |
| Battery Life |
30 hours (recording time) |
| Size |
30.5 × 25.5 × 15 cm
(12" × 10" × 6") |
| Weight* |
9 kg (20 lbs.) |
