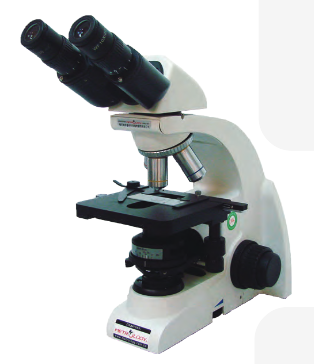

Excellent optic performance and stable ergonomic mechanical construction, high efficient,
high quality and cost-effective biological microscope.
Optical System：Infinity independent achromatic optical design
Observation Tube：30° inclined, interpupillary distance 48-75mm, 360°rotatable. Trinocular
light is split 20/80 by a high quality coated prism
Nosepieces：Inward, four positions, Plan 4X/0.10 WD12.31、10X/0.25 WD5.03、40X/0.65、
WD0.72、100X/1.25 WD0.17(OIL
Illumination：Built-in 3W high brightness LED bulb, with field diaphragm provides Kohler
type illumination, operated life:60000 hours
| Model No |
Objectives lens |
Magnification |
Type |
| OP-BM9001 |
4X/10X/40X/100X |
40X/100X/400X/1000X |
Binocular |
| OP-BM9002 |
4X/10X/40X/100X |
40X/100X/400X/1000X |
Trinocular |
