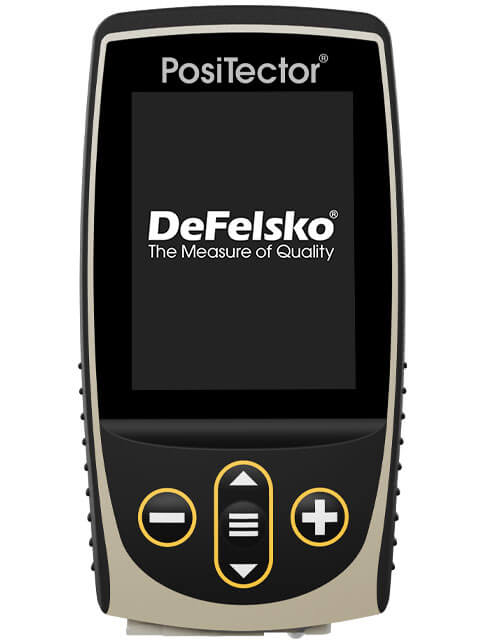

PosiTector Gage Bodies can be used with any PosiTector probe. Choose between Standard and Advanced models, each with a protective carrying case in either small or big.


The award-winning PosiTector gage bodies accommodate all coating thickness (6000/200), surface profile (SPG/RTR), environmental (DPM/IRT), salt contamination (SST), hardness (BHI/SHD), gloss (GLS), and ultrasonic wall thickness (UTG) probes.

Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches

Touchscreen keyboard quickly renaming batches, adding notes, and more

WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates

Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.

Store thickness, profile, environmental, wall thickness, hardness and salt contamination measurements in individual batches

Includes protective rubber holster, wrist strap, 3 AAA batteries, choice of case, protective lens shield, USB cable and two (2) year warranty.To determine which case size is most appropriate, see the Case Size by Probe chart.

Specifications

Name/Description	Order Code
PosiTector Standard Gage Body with Small Protective Case	BDYSTD
PosiTector Standard Gage Body with Small Protective Case	BDYADV
PosiTector Standard Gage Body with Small Protective Case	BDYSTDL
PosiTector Standard Gage Body with Small Protective Case	BDYADVL

For use with the PosiTector 6000, PosiTector 200, PosiTector SPG, PosiTector RTR H, PosiTector RTR 3D, PosiTector DPM, PosiTector IRT, PosiTector SST, PosiTector UTG, PosiTector SHD, PosiTector BHI, PosiTector GLS
