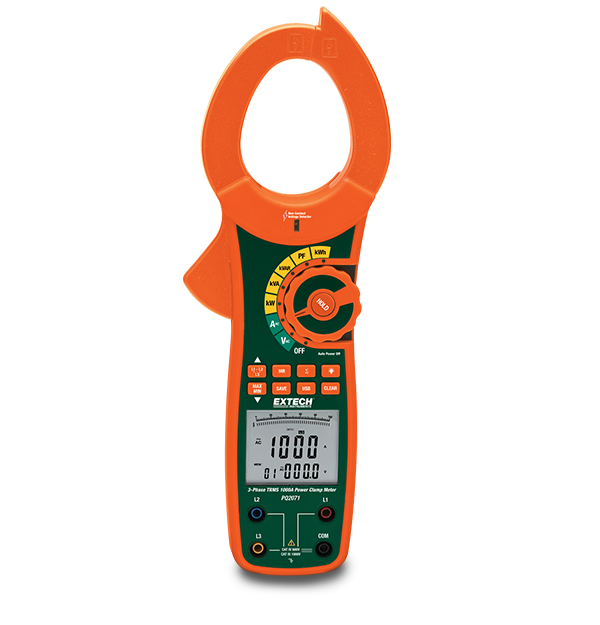

The PQ2071 is a 1-/3-Phase 1000 Amp True RMS AC Power Clamp Meter. Extech's PQ2071 Power Clamp Meter serves multiple functions, including True RMS Clamp Meter, Power Meter, Multimeter, and AC Voltage Detector. The PQ2071 has a CAT IV-600 Volt safety rating and measures AC current, voltage, frequency, and power, which includes True Power, Apparent Power, Reactive Power, and Active Power. Measures 1-phase and balanced 3-phase true power (kW), apparent power (kVA), reactive power (kVAR), and active power (kWh), as well as power factor and phase angle. Featuring a 2.16 inch. The clamp jaw opening measures 55 millimeters. Large dual backlit LCD display (9999 counts) with bar graph. Frequency readings up to 200 Hz. You can manually store and recall up to 99 data sets. Functions include Data Hold, Max/Min, and Auto Power Off. USB interface for connecting to.
| AC Current | 1000A |
|---|---|
| AC Current Basic Accuracy | ±2% |
| AC Current Max Resolution | 100mA |
| AC Voltage | 750V |
| AC Voltage Basic Accuracy | ±1.2% |
| AC Voltage Max Resolution | 0.1V |
| Active Power | 9999kWh |
| Active Power Basic Accuracy | ±3% |
| Active Power Max Resolution | 0.001 |
| Apparent Power | 750kVA |
| Apparent Power Basic Accuracy | ±3% |
| Apparent Power Max Resolution | 10kVA |
| Continuity | Yes |
| Diode Test | Yes |
| Frequency | 50Hz to 200Hz |
| Frequency Max Resolution | 1Hz |
| Jaw Size | 2.16" (55mm) |
| Phase | -180 to 180° |
| Phase Basic Accuracy | ±2° |
| Phase Max Resolution | 1° |
| Power Factor | 0.3 to 1 |
| Power Factor Basic Accuracy | ±0.02 |
| Power Factor Max Resolution | 0.001 |
| Reactive Power | 750kVAR |
| Reactive Power Basic Accuracy | ±4% |
| Reactive Power Max Resolution | 10VAR |
| True Power | 750kW |
| True Power Basic Accuracy | ±3% |
| True Power Max Resolution | 10W |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 11.5 × 3.75 × 1.5" (292 × 95 × 38mm) |
| Display | 9999-count LCD with bargraph and backlighting |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 1000V, CATIV - 600V |
| Warranty | 2 years |
| Weight | 18.4oz (522g) |
