Optical Flats/ Special Measuring Gauge

Details: Category: Optical Flats/ Special Measuring Gauge

Measurement function:Specially designed for testing geometric errors such as concentricity、runout of cylindrical workpieces

Standard accessories：Precision steel base, concentric instrument body, small type universal magnetic stand, calibration report

Optional accessories：All kind of indicator

Measuring range：	Diameter 3~35mm Length 5~150mm Cylindrical workpieces
Material of measure roller：	Hardened tool steel HRC58~62 Rotation accuracy ≦3μm

Details: Category: Optical Flats/ Special Measuring Gauge

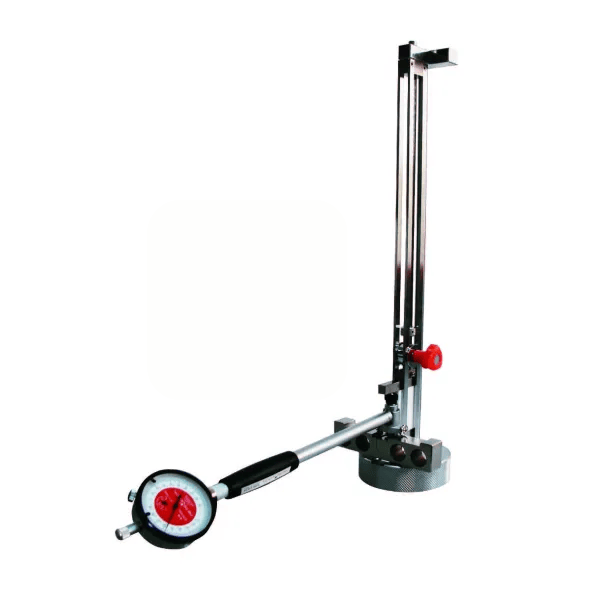

For dimension set zero & calibration of bore gauge.

Model No.	Set Range	Uncertainty of measurement
BGC-9200	0-200mm	MAX: 0.002mm
BGC-9300	0-300mm
BGC-9600	0-600mm

*Optional: Standard gauge block

Details: Category: Optical Flats/ Special Measuring Gauge

For inspecting parallelism, flatness of workpieces. Inverted for measurements of height, depth, steps without datum faces. Polished chrome steel frame.

Model No.	Measuring Base	Flatness
MG-9001	Φ95mm	0.002mm
MG-9002	Φ150mm	0.003mm

Able to expand double probes of measuring function, for measuring workpiece actual thickness.

Details: Category: Optical Flats/ Special Measuring Gauge

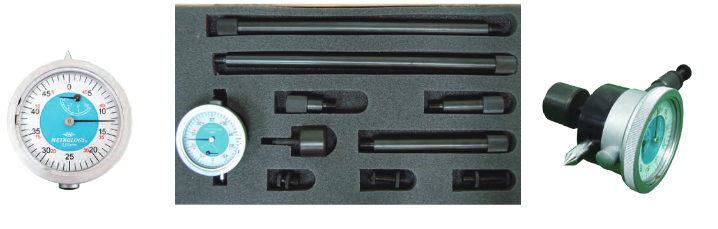

Model No.	Measuring Range	Graduation	Remark
CS-9000	Indicator 0-3mm	0.01mm	Full set with indicator, measuring anvil & extension bar
CS-9000	With extension measuring bar 60-500mm	0.01mm	Full set with indicator, measuring anvil & extension bar

Page 1 of 3

Concentricity Tester

Bore Gauge Checkmaster

Inverted Measuring Gauge

Dial Crank Shank Gage
