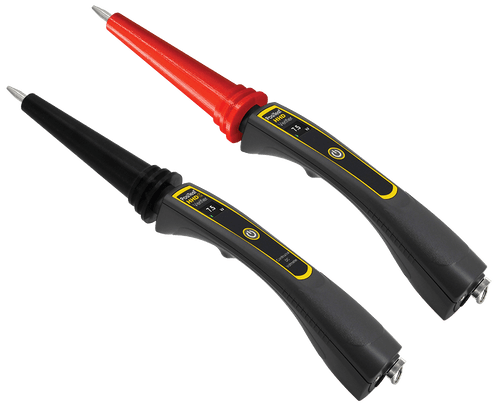

PosiTest HHD Verifier is a standalone voltmeter (crest meter, jeep meter) used to test the accuracy and functionality of pulse or continuous type DC holiday detectors.

Ideal for field/laboratory verification of pulse or continuous DC holiday detectors

Wide measurement range

Simple two step operation

Lightweight/Portable — requires no external power source

Certificates of Calibration showing traceability to NIST included

Two year warranty

Made in USA

Ideal for field/laboratory verification of the PosiTest HHD High voltage Holiday Detector series

Specifications

	PosiTest HHD Verifier	PosiTest HHD C Verifier
Voltage Range	0.5 – 35 kV	0.5 – 30 kV
Resolution	0.5 kV – 1 kV: 10 Volt Steps > 1 kV: 100 Volt Steps
Accuracy	±5%
Operating Temperature	-20° to 60° C (-4° to 140° F)

Device comes complete with verifier, 1.8 m (6') ground wire, 3 AAA batteries, instructions, Long Form Certificate of Calibration traceable to NIST, two year warranty

Size: 43 x 5 x 5 cm (17" x 2" x 2")
Weight: 476 g (1.05 lbs.)
