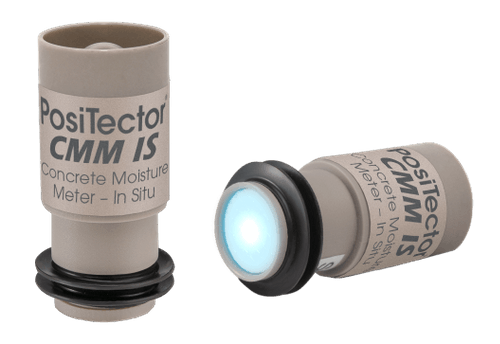

PosiTector CMM IS (concrete moisture meter in-situ) probes and a free mobile app help customers navigate the ASTM F2170 documentation standards. View and record readings wirelessly using your Apple or Android smart device, or PosiTector DPM Advanced gage.
Measure and report relative humidity (RH) and temperature in concrete floor slabs in conformance with ASTM F2170
Fully reusable Smart Probes with included Calibration Check Chambers for optimal storage conditions and faster acclimation
No need to open the hole or remove the cap. Probes remain powered on for up to 3 weeks and broadcast wirelessly via Bluetooth while in situ
No consumables required—Combined sleeve and probe design simplifies the ASTM F2170 installation process
Rapid response precision probes provide accurate, repeatable readings
Certificate of Calibration showing traceability to NIST included (Long Form)
Concrete Moisture Meter non-destructively measures the moisture content of concrete in accordance with ASTM F2659

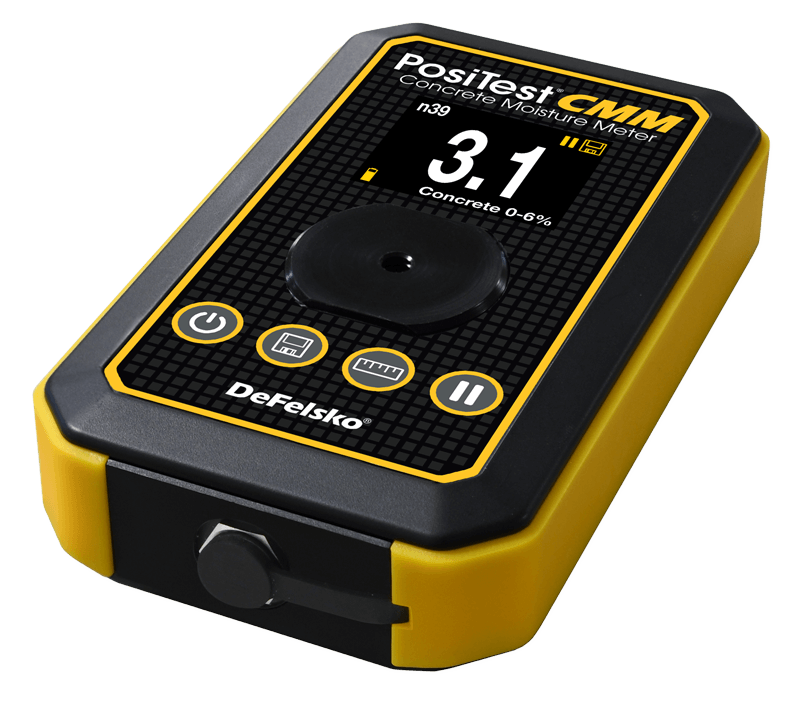

The PosiTest CMM Concrete Moisture Meter is a rapid, non-destructive impedance meter designed for inspectors who want to swiftly assess the moisture state of concrete slabs.
Easy-to-read digital display takes the guesswork out of analog scales
Storage of 200 readings—stored readings can be viewed or downloaded
Innovative Hold Max and Save Mode waits for the reading to stabilize, then automatically saves it into memory
Built-in threaded mounting point for the optional Telescopic Extender to ergonomically measure without bending or kneeling
Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
Conforms to ASTM F2659
Specifications
Measurement Scales
0 to 6% Moisture Content of Concrete*
0 to 4% Carbide Method Equivalent
0 to 100 Relative
Accuracy
± 0.5% Moisture Content of Concrete
Depth of Penetration
~20 mm
~0.75”
Temperature Range
5° to 40° C
40° to 105° F
IP Rating
65 (dust and water jet resistance)
Memory
200 readings
Power
2 AAA Alkaline Batteries
* This scale is calibrated using the gravimetric method (percentage of dry weight).
