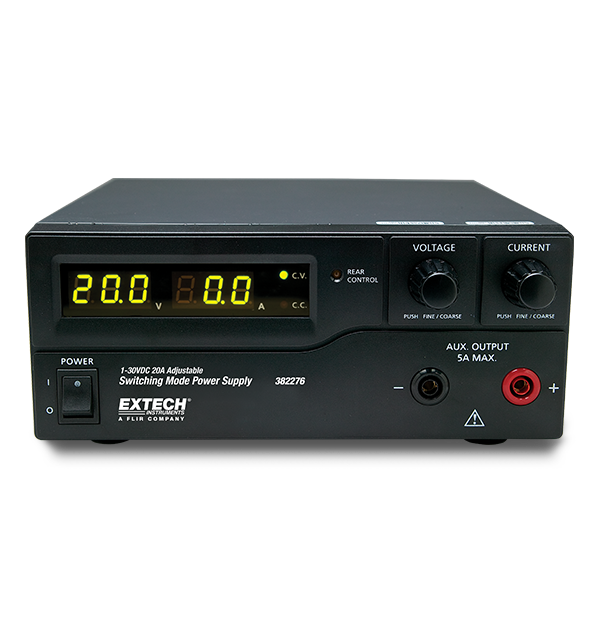

The 382276 Switching Mode DC Power Supply offers an adjustable output range of 0 to 30V/ 20A, two user-defined presets, and one factory setting of 13.8V/20A. The power supply has dual LED displays, good RFI immunity, great EMI, and a thermostatic control fan. Overvoltage, overtemperature, and short circuit protection are among the other features. It operates at 220V, 50/60Hz, and comes with an AC power cord.
| Line Current Regulation | 50mA min |
|---|---|
| Line Voltage Regulation | 20mV |
| Load Current Regulation | 100mA min |
| Load Voltage Regulation | 50mV |
| Output Current | 1 to 20A |
| Output Current Basic Accuracy | ±(0.5% of reading + 2 digits) |
| Output Current Max Resolution | 100mA |
| Output Voltage | 1 to 30V |
| Output Voltage Basic Accuracy | ±(0.5% of reading + 2 digits) |
| Output Voltage Max Resolution | 100mV |
| Ripple and Noise | <5mVrms |
| Certifications | CE |
| Dimensions | 7.9 × 3.5 × 8.5" (200 × 90 × 215mm) |
| Power | 230V, 50Hz/60Hz |
| Warranty | 2 years |
| Weight | 5.7lbs (2.6kg) |
