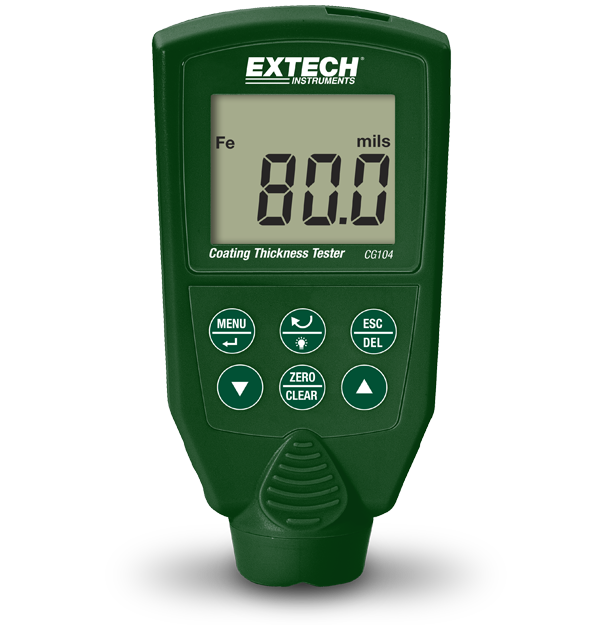

The CG104 is a pocket-sized coating thickness tester that allows for quick one-handed operation and non-destructive thickness measurements on ferrous and non-ferrous surfaces. Its innovative reversible display allows you to capture readings from difficult angles of the area being measured, and it boasts an easy-to-use menu system and an illuminated display function. The built-in memory can store and remember up to 255 readings. Comes with two AAA batteries, calibration standards (one ferrous plate, one non-ferrous plate, and one standard coating plate sheet), wrist strap, and a protective box.
| Coating Thickness (Ferrous) | 0 to 2000µm (0 to 80.0mils) |
|---|---|
| Coating Thickness (Ferrous) Basic Accuracy | ±4 digits (0 to 7.8mils); ±10 digits (0 to 199µm); ±3% (7.9 to 39.0mils); ±3% (200 to 1000µm); ±5% (39.1 to 80.0mils); ±5% (1001 to 2000µm) |
| Coating Thickness (Ferrous) Max Resolution | 1µm (0.1mils) |
| Coating Thickness (Non-Ferrous) | 0 to 1000µm (0 to 40.0mils) |
| Coating Thickness (Non-Ferrous) Basic Accuracy | ±4 digits (0 to 7.8mils); ±10 digits (0 to 199µm); ±3% (7.9 to 39.0mils); ±3% (200 to 1000µm) |
| Coating Thickness (Non-Ferrous) Max Resolution | 1µm (0.1mils) |
| Working Principle (Ferrous) | Magnetic Induction |
| Working Principle (Non-Ferrous) | Etdy Current |
| Certifications | CE |
| Dimensions | 4.1 × 2.2 × 1.1" (105 × 55 × 27mm) |
| Power | 2 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 2.82oz (80g) |
