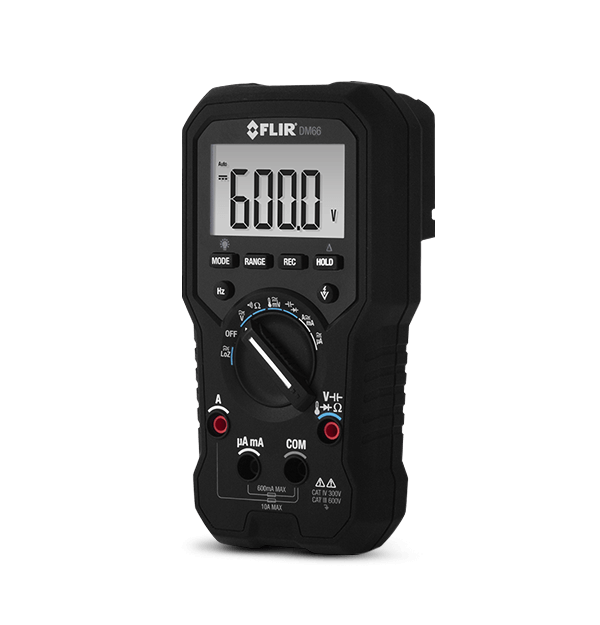

The DM66 digital multimeter is perfect for automation field service or electronics workers, since it has a complete feature set that includes low impedance (LoZ) mode, frequency, diode, capacitance, and a Type K thermocouple input for temperature measurement. The multimeter combines a wealth of functions, exact measurements, and high-quality build to create a great value instrument. The DM66 is user-friendly and long-lasting, making it ideal for everyday usage.
| AC/DC Voltage | Range: 600.0 V Basic Accuracy: ±1.0% / ±0.4% |
|---|---|
| AC/DC Amps | Range: 10.00 A Basic Accuracy: ±1.5% / ±1.0% |
| AC/DC Amps | Range: 10.00 A Basic Accuracy: ±1.5% / ±1.0% |
| AC/DC LoZ V | Range: 600.0 V Basic Accuracy: ±2.0% |
| AC/DC mAmps | Range: 600.0 mA Basic Accuracy: ±1.0% / ±0.7% |
| AC/DC microAmps | Range: 6000 µA Basic Accuracy: ±1.5% / ±1.0% |
| AC/DC mVolt | Range: 600.0 mV Basic Accuracy: ±1% / ±0.4% |
| AC/DC Voltage | Range: 600.0 V Basic Accuracy: ±1.0% / ±0.4% |
| Capacitance | Range: Basic Accuracy: 200.0 nF ±1.5% 200.0 µF ±1.5% 10 mF ±4.5% 10.00 mF ±5.0% |
| Continuity check | Between 30 Ω and 480 Ω |
| Diode Test | Range: 3.000 V Basic Accuracy: ±0.9% |
| Frequency Range | Range: 50.00 kHz |
| Resistance | Range: Basic Accuracy: 600.0 kΩ ±0.5% 6.00 MΩ ±0.3% 60.00 MΩ ±0.9% |
| Thermocouple | –40 to 752.0°F DMM ± (1.0% + 3°F), –40 to 400°C DMM ± (1.0% + 1.5°C) |
| True RMS | Yes |
| VFD AC Voltage | Range: 600.0 V RMS Basic Accuracy: ±1.0% |
| Auto Power Off | Yes |
| Battery | 3 AA batteries; optional TA04 Li-Poly rechargeable battery |
| Drop test | 2 m |
| IP Rating | IP40 |
| Warranty | Limited 3-Year |
