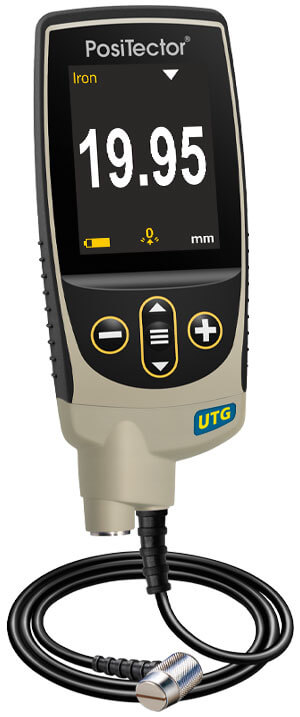

PosiTector UTG CLF

Low frequency ultrasonic thickness probes are used to measure the wall thickness of attenuative materials such cast/ductile iron, cast aluminum, and cast zinc.

Low frequency 2.25 MHz dual element transducer with cabled probe

Proprietary algorithm distinguishes back wall reflections from grain noise (reflections) found in cast materials

Ideal for measuring attenuative materials such as cast iron

Probe Model UTG CLF
Probe Type:	2.25 MHz Dual Element
Thru-Paint Capability: (Multiple Echo):	No
*Measurement Range - Single Echo:	0.080” to 5.000” 2.00 to 125.00 mm
Resolution:	0.001” 0.01 mm
*Accuracy:	±0.001” ±0.03 mm

*Measurement range is for carbon steel and depends upon surface condition, temperature, and material.
