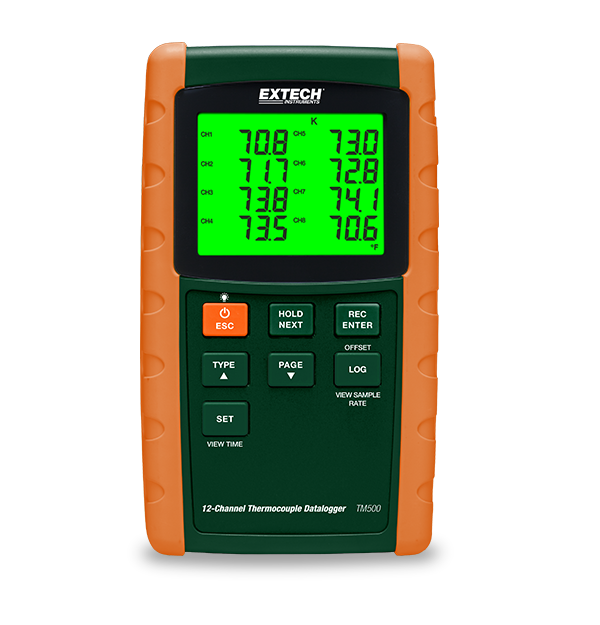

The TM500 is a 12-channel data logging thermometer. This Datalogging Thermometer includes six thermocouple types (J, K, E, T, R, and S). Displays CH1 to CH8 or CH9 to CH12 on the screen; data from all 12 channels can be stored simultaneously onto an SD card in Excel format for future study. Comes with 8 AA batteries, 12 general-purpose Type K bead wire temperature probes, an SD card, and a protective carrying bag.
| Memory | Datalog readings on SD card (included) |
|---|---|
| Temperature (Type E) Basic Accuracy | -148 to 1652 °F (-100 to 900 °C) |
| Temperature (Type E) Max Resolution | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature (Type J) | 0.1°/1° |
| Temperature (Type J) Basic Accuracy | -148 to 2102 °F (-100 to 1150 °C) |
| Temperature (Type J) Max Resolution | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature (Type K) Basic Accuracy | 0.1°/1° |
| Temperature (Type K) Max Resolution | -148 to 2372 °F (-100 to 1300 °C) |
| Temperature (Type N) | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature (Type N) Basic Accuracy | 0.1°/1° |
| Temperature (Type R) Max Resolution | 32 to 3092 °F (0 to 1700 °C) |
| Temperature (Type S) | ±0.5% of reading (+5 °F/+3 °C) |
| Temperature (Type S) Basic Accuracy | 0.1°/1° |
| Temperature (Type S) Max Resolution | 32 to 2732 °F (0 to 1500 °C) |
| Temperature (Type T) | ±0.5% of reading (+5 °F/+3 °C) |
| Temperature (Type T) Basic Accuracy | 0.1°/1° |
| Temperature (Type T) Max Resolution | -148 to 752 °F (-100 to 400 °C) |
| Temperature [IR] | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature [Type K] | 0.1°/1° |
| Certifications | CE |
| Dimensions | 8.9 × 4.9 × 2.5" (225 × 125 × 64mm) |
| Power | 8 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 2.1lbs (944g) |
