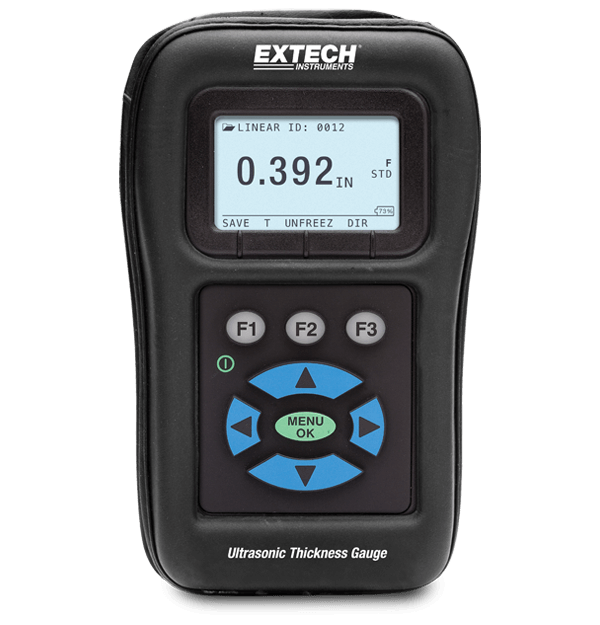

The Extech TKG150 is a Digital Ultrasonic Thickness Gauge and Datalogger. The compact and durable meter enables for non-destructive thickness measurements. It provides thickness gauges in a compact, portable, durable chassis that is perfect for field applications. Ultrasonic technique enables non-destructive thickness measurements for mostly steel structures. Comes with a protective holster, a 2 oz container of coolant, two AA batteries, a 5 MHz transducer, a durable carrying case, a USB cable, and exporter software.
Specifications
Alarm
Audible beeping; illuminae flashing display and keypad; and vibration feedback
B-Scan (Cross Section)
Displays a visual cross section of inspection area with no correlation to distance
Differential Mode
Displays the difference from the actual thickness measurement and a user entered reference value
Echo to Echo
Measure the metal thickness only (paint and coatings do not affect base material thickness value)
Gain
Low, Standard, High
Material Velocity Calibration
0.200 to 0.7362 in/µS (0.508 to 18.699mm/µS)
Memory
Stores 50k readings (expandable to 100k) and 5,000 waveforms
Steel Thickness
5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm)
Velocity Mode
Displays acoustic sound speed to measure thickness of unknown materials

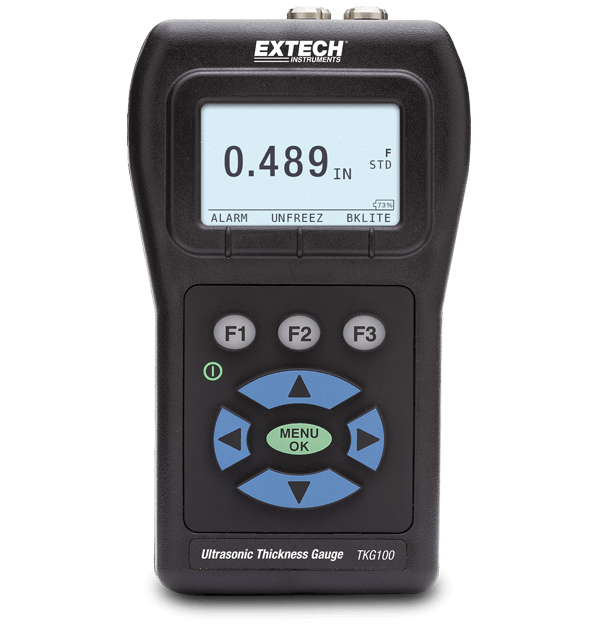

The Extech TKG100 Thickness Gauges are designed in a compact, portable, durable chassis that is suited for use in the field. Ultrasonic technique enables non-destructive thickness measurements for mostly steel structures. It has several transducer options for high-temperature and difficult-to-measure materials. Comes with a 2 oz container of coolant, two AA batteries, a 5 MHz transducer, and a sturdy carrying bag.
Specifications
Material Velocity Calibration
0.200 to 0.7362 in/µS (0.508 to 18.699mm/µS)
Steel Thickness
5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm)
The Extech CG304 Coating Thickness Tester provides a non-destructive method for measuring the thickness of ferrous and non-ferrous substrates, with automatic material recognition. Memory holds 2500 readings. The unique Bluetooth interface feature wirelessly transmits data to your PC for further analysis, allowing you to compile a detailed report. Special LCD with backlighting and contrast for easier viewing in different lighting settings. The kit includes two AAA batteries, software, a protective case, steel and aluminum substrates, and standard calibration films.
Dual technology automatically recognizes ferrous and nonferrous substrates without requiring you to guess the material. Allows for rapid, one-handed, non-destructive measuring of coating thickness on a variety of surfaces.
