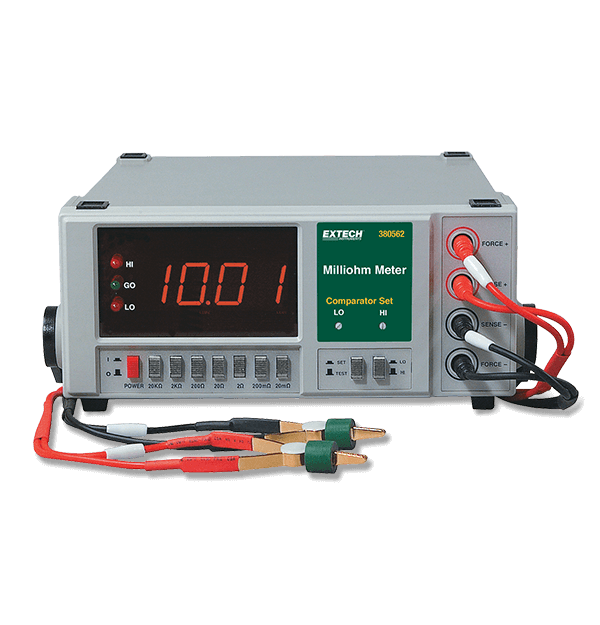

The Extech 380562 Milliohm Meter is compact and precise, with 7 ranges and measuring down to 0.01 mΩ utilizing 4-wire Kelvin clip test leads. Measurements are displayed on the unit's big 20.3 mm (0.8 in) LCD with 1999 counts. It includes a built-in comparator for Hi/Lo/Go resistance testing or selecting. Complete with 4-wire cables, Kelvin clip connections, and a power cord.
| Specifications | Range | Resolution | Current | Accuracy (%rdg) |
|---|---|---|---|---|
| Resistance | 20m | 0.01m | 1A | ±(0.2% + 6d) |
| 200m | 0.1 | 1A | ±(0.2% + 4d) | |
| 2 | 0.001> | 100mA | ±(0.2% + 4d) | |
| 20 | 0.01> | 10mA | ±(0.2% + 4d) | |
| 200 | 0.1> | 1mA | ±(0.2% + 4d) | |
| 2k | 0.001k> | 100μA | ±(0.2% + 4d) | |
| 20k | 0.1k> | 10μA | ±(0.2% + 4d) | |
| Power | 110VAC, 60Hz or 220VAC 50Hz | |||
| Dimensions/Weight | 11 x 8.3 x 3.5" (280 x 210 x 90mm)/ 4.85lb (2.2kg) |
