Rockwell Hardness Tester

Details: Category: Hardness Testing Equipment

It adopts big LCD screen, indicating the hardness value directly, conversion hardness value, test force, dwell time, room temperature, maximum & minimum value, mean, test date and time, it can supply all analysis data.

It is automatic to test when the working platform lifting up to some height, then indicate the test result directly

Operation panel adopts menu structure concise, Chinese or English window, easy to shift

Built-in printer, it can print out the test data directly

The machine shell is formed by cast iron, stable structure and it is not easy to be out of shape

Rotate the loading wheel, it can easy to adjust the three loading test force to choose the hardness unit

Application & other feature same dial type Rockwell hardness tester

Specifications

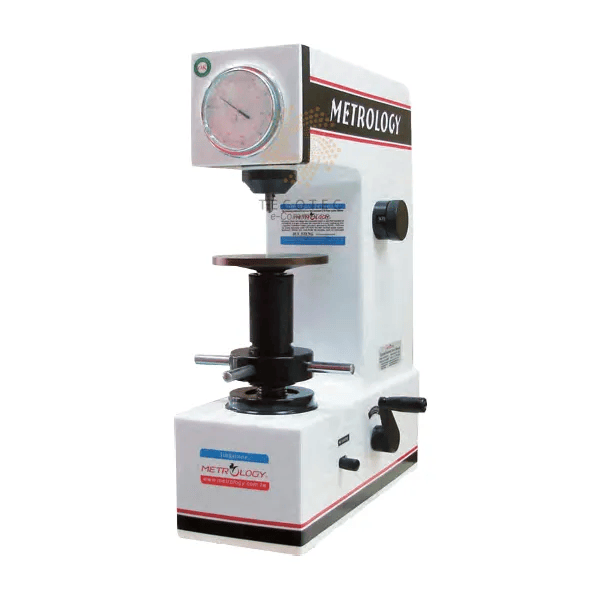

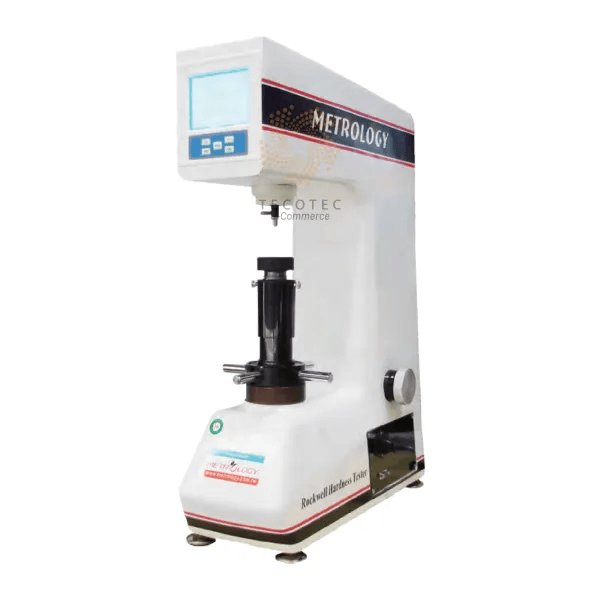

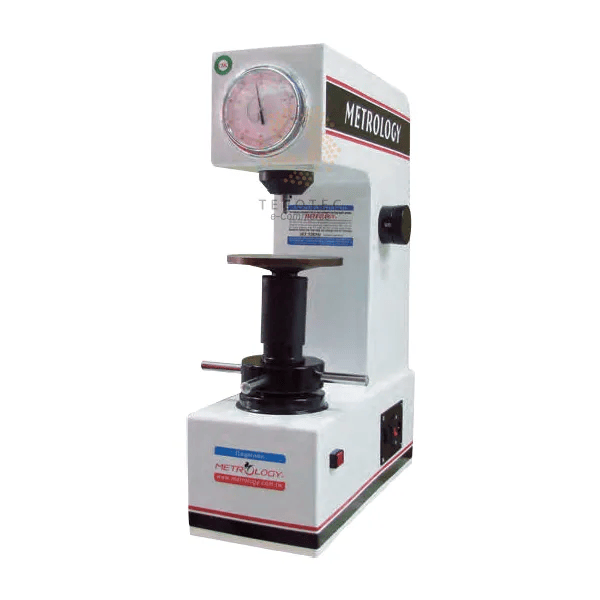

Model	RHT.9000M	RHT.9000E	RHT.9000D
Testing method	Manual	Electric	Auto
Rockwell scale	HRA · HRB · HRC · HRD · HRE · HRF HRG · HRH · HRK	HRA · HRB · HRC · HRD · HRE · HRF HRG · HRH · HRK · HRL · HRM · HRP HRR · HRS · HRV
Hardness value range	HRA:20~88	HRB:20~100	HRC:20~70
Minimum measuring unit	0.5HR	0.1HR
Hardness data read	Dial	Digital LCD
Conversion scale	Look up table	HRA · HRB · HRC · HRD · HRF HV · HK · HBW · HR15N · HR30N HR45N · HR15T · HR30T · HR45T (Direct Digital Conversion)
Preliminary test force	10KG (98N)
Total test force	60Kg(588N), 100Kg (980N), 150Kg (1471N)
Dwell time	1~60S
Specimen maximum height allowed	170mm	190mm(Higher type: 400mm)
Throat depth	140mm	165mm(Higher type: 190mm)
Instrument size	460x180x650mm (LxWxH)	520x240x720mm (LxWxH)
Instrument weight	80KG	85KG(Higher type: 95kg)
Power supply	none	AC110 or 220V + 5%, 50~60 Hz

Remarks: The increased height Rockwell hardness tester only provides digital Rockwell hardness tester (RHT-H9000D).
