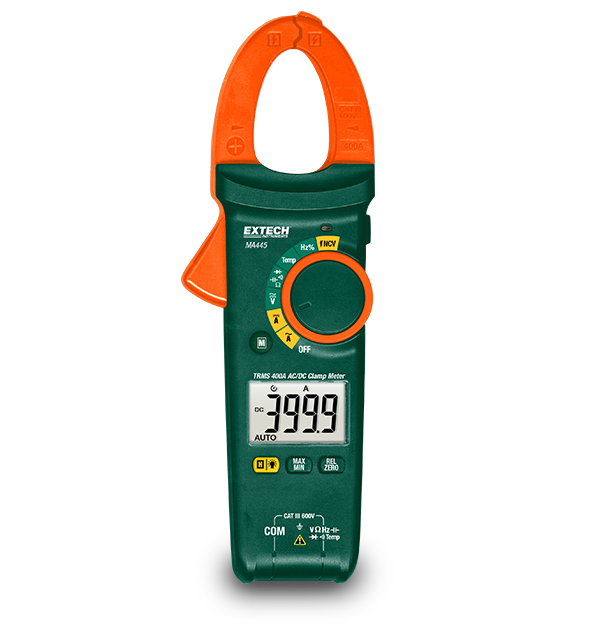

There are three variants to pick from, each with or without True RMS and AC/DC Current features. Choose the True RMS model for accurate non-sinusoidal waveform readings, the DC Current model for automotive applications, or the Type K model for temperature measurements. The MA440 Series meters come fully loaded with multimeter operations and a built-in non-contact voltage (NCV) detector to fulfill your application requirements.
| AC Current | 400.0A |
|---|---|
| AC Current Basic Accuracy | ±2.5% |
| AC Current Max Resolution | 10mA |
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±1.2% |
| AC Voltage Max Resolution | 1mV |
| Capacitance | 40mF |
| Capacitance Max Resolution | 0.01nF |
| Continuity | Yes |
| DC Current | 400.0A |
| DC Current Basic Accuracy | ±2.0% |
| DC Current Max Resolution | 10mA |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±0.8% |
| DC Voltage Max Resolution | 0.1mV |
| Diode Test | Yes |
| Duty Cycle | Yes |
| Frequency | 1MHz |
| Frequency Max Resolution | 0.01Hz |
| Jaw Size | 1.2" (30mm), conductors up to 500MCM |
| Non-Contact Voltage (NCV) Detector | 100 to 600VAC |
| Resistance | 40MΩ |
| Resistance Max Resolution | 0.1Ω |
| Temperature (Type K) Max Resolution | -40° to 1832°F (-40° to 1000°C) |
| Temperature (Type N) Basic Accuracy | 1°F/°C |
| True RMS | Yes |
| Certifications | CE, ETL |
| Dimensions | 9 × 3 × 1.6" (228 × 77 × 41mm) |
| Power | 3 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 9.3oz (265g) |
