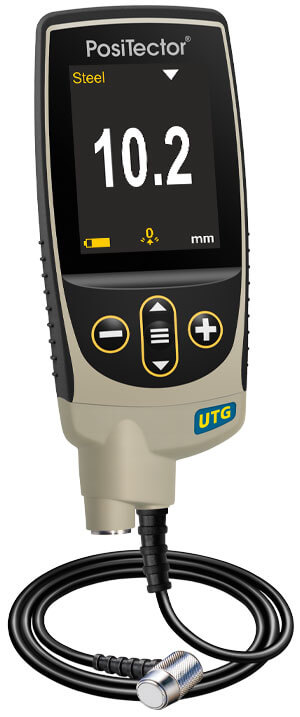

PosiTector UTG M

The Ultrasonic Thickness Tester has Thru-Paint functionality, which allows you to rapidly and accurately test the metal thickness of a painted structure without having to remove the covering. Ideal for measuring blasted materials and other applications that require a more resilient wear face.

5 MHz contact probe with wear resistant alumina probe tip and cabled probe

Multiple-Echo technique averages 3 or more echoes for accurate and reliable readings

Toggle between Single and Multiple-Echo modes

Multiple Echo mode eliminates coating thickness

Single Echo mode detects pits/flaws and increases measurement range

Probe Model UTG M
Probe Type:	5 MHz Dual Contact
Thru-Paint Capability:	Yes
*Measurement Range - Single Echo:	0.100” to 5.000” 2.50 to 125.00 mm
*Measurement Range - Multiple Echo:	0.100” to 2.500” 2.50 to 60.00 mm
Resolution:	0.001” 0.01 mm
*Accuracy:	±0.001” ±0.03 mm

*Measurement range is for carbon steel and depends upon surface condition, temperature, and material.
