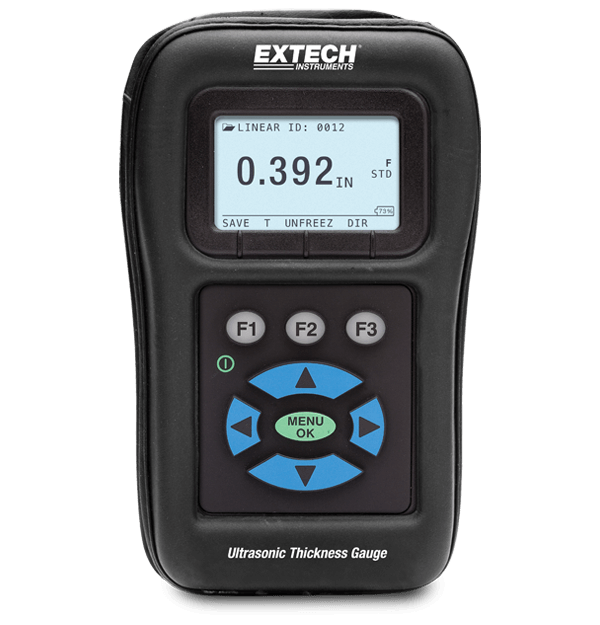

The Extech TKG150 is a Digital Ultrasonic Thickness Gauge and Datalogger. The compact and durable meter enables for non-destructive thickness measurements. It provides thickness gauges in a compact, portable, durable chassis that is perfect for field applications. Ultrasonic technique enables non-destructive thickness measurements for mostly steel structures. Comes with a protective holster, a 2 oz container of coolant, two AA batteries, a 5 MHz transducer, a durable carrying case, a USB cable, and exporter software.
| Alarm | Audible beeping; illuminae flashing display and keypad; and vibration feedback |
|---|---|
| B-Scan (Cross Section) | Displays a visual cross section of inspection area with no correlation to distance |
| Differential Mode | Displays the difference from the actual thickness measurement and a user entered reference value |
| Echo to Echo | Measure the metal thickness only (paint and coatings do not affect base material thickness value) |
| Gain | Low, Standard, High |
| Material Velocity Calibration | 0.200 to 0.7362 in/µS (0.508 to 18.699mm/µS) |
| Memory | Stores 50k readings (expandable to 100k) and 5,000 waveforms |
| Steel Thickness | 5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm) |
| Velocity Mode | Displays acoustic sound speed to measure thickness of unknown materials |
| Certifications | CE |
| IP Rating | IP54 |
| Power | 2 × AA (1.5V) batteries |
| Warranty | 2 years |
