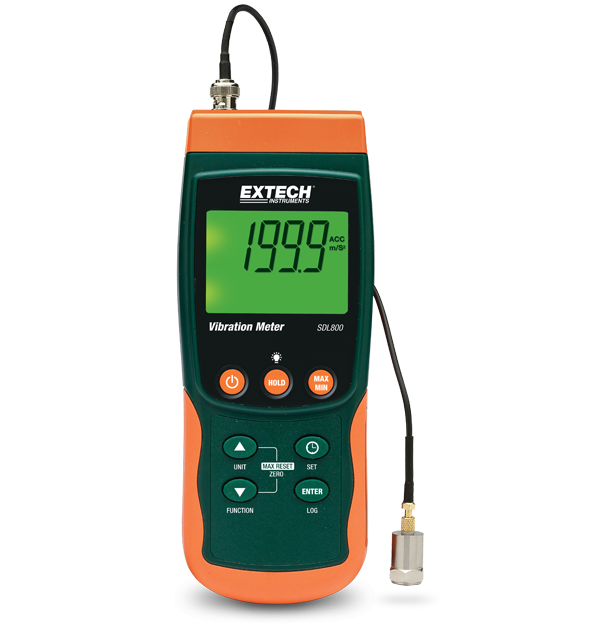

The SDL800 vibration sensor has a frequency range of 10Hz to 1kHz and a basic accuracy of ±(5% + 2 digits). It comes with a 47.2" (1.2m) cable, a magnetic adapter, a remote sensor, a magnetic mount, 6 x AA batteries, an SD memory card, and a hard carrying case. Users can manually store 99 readings or continuously log data to a PC for further analysis in Excel format.
| Acceleration | 656ft/s², 200m/s², 20.39g |
|---|---|
| Acceleration Basic Accuracy | ±(5% of reading + 2 digits) |
| Acceleration Max Resolution | 1ft/s², 0.1m/s², 0.01g |
| Displacement | 0.078in, 2mm (peak-to-peak) |
| Displacement Basic Accuracy | ±(5% of reading + 2 digits) |
| Displacement Max Resolution | 0.001in, 0.001mm |
| Memory | 20M data records using 2G SD card |
| Velocity | 7.87in/s, 200mm/s, 19.99cm/s |
| Velocity Basic Accuracy | ±(5% of reading + 2 digits) |
| Velocity Max Resolution | 0.01in/s, 0.1mm/s, 0.01cm/s |
| Certifications | CE |
| Dimensions | 7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 3 years |
| Weight | 21.1oz (599g) |
